As the only source for this manual it rather rank quite high since it is well scanned and perfectly readable.
 ;
the manual is in good quality and it's in pdf. manual was send in less then 24h.
regards
mike
;
I would not plug this machine in without finding a manual like this. In addition to setup and normal operating instructions, it has troubleshooting flowcharts, diagrammed mechanical adjustments, and schematics to beat the band. The tech I hand it to would be thrilled to find solder side PCB diagrams with component outlines superimposed, pinouts for every IC chip, and line drawings of transistors, with labeled legs.
As for printing quality, this may be a copy of a copy, but even the finest print when enlarged is very legible. There is a bit of grayed print over a few pages, as if a wet page were placed over it, but the print is still very legible. If you could borrow an original manual and get it printed and bound for 4 to 6 times the cost, you could get better quality. In that case you wouldn't be here. For price, utility, and availability I am rating this manual highly.
;
I received the Manual in a timely manner and it was exactly what I needed.
This is a perfect copy of the Service Manual, The quality is great. I am very
happy. Thank you
;
exactly as they say. Within 24 hours the link to the pages and offcourse it was the right service manual. Super and thanks
Allgemeiner Teil / General Section
Technische Daten / Technical Data
4
37 DAVIO 55 37-4101 P 37-4101/12 MV SAT ST 55-854/8 DOLBY
(VNM) (VNA) 2103 2105 CUC 2121 M
Bildröhre / Picture Tube 34cm 51cm
Sichtbares Bild Visible picture 55cm (21"), FST, Black Line D, Philips 27,5kV small neck, optionally Thomson, Samsung / 90°
Bildröhre 37cm (14"), Black Matrix, Picture Tube / 90° Philips
Elektronik / Electronic 99 TV + 1 AV 199 TV/SAT 59 Radio 1 99 TV + 2 AV when retrofitted with SAT)
Programmspeicherplätze (199 TV/SAT 59 Radio + 1 AV Programme positions bei Nachrüstung SAT/
PLL Frequenz Synthesizer Tuning UHF/VHF, global pinning
Tuner
globale Pinbelegung
PLL frequency synthesizer tuning UHF/VHF,
PAL, SECAM, NTSC 4.43MHz,
TV-Normen TV-Standard
B/G, L/L', I, DK/K'
via AV: NTSC 3,58 MHz
Stereo System Deutsch / German A2 (B/G/D/K) Stereo systems NICAM 5,85 (B/G/L) + 6,52MHz (I)
_
Videotext 8-Seiten-TOP/FLOF-text Teletext 8-pages-TOP/FLOF-text Mono 6W Stereo 2 x 8W
Musikleistung Music power
Anschlüsse / Connections Front Stereo 3,5mm Klinke,
Mono 3,5mm Klinke, schaltet eingebauten Lautstärke regelbar, individuelle Tonkanalwahl
Kopfhörer Lautsprecher ab bei 2-Ton Empfang / Headphones Mono Stereo 3.5mm jack, with dual-sound broadcasts
switch off inserted Loudspeaker adjustable volume, inividual channel selection
Anschlüsse Rückwand / Connections Rear Panel
FBAS Ein-/Ausgang,
Euro AV 1 (schwarz/black)
RGB / SBAS Eingang
CCVS in-/output, RGB / SCVS input
Netzteil / Mains Stage 230V ±15% 50 / 60Hz 38W ca. 65W
Netzspannung (Regelbereich) Mains voltage (variable)
Netzfrequenz Mains frequency
Leistungsaufnahme Power consumption

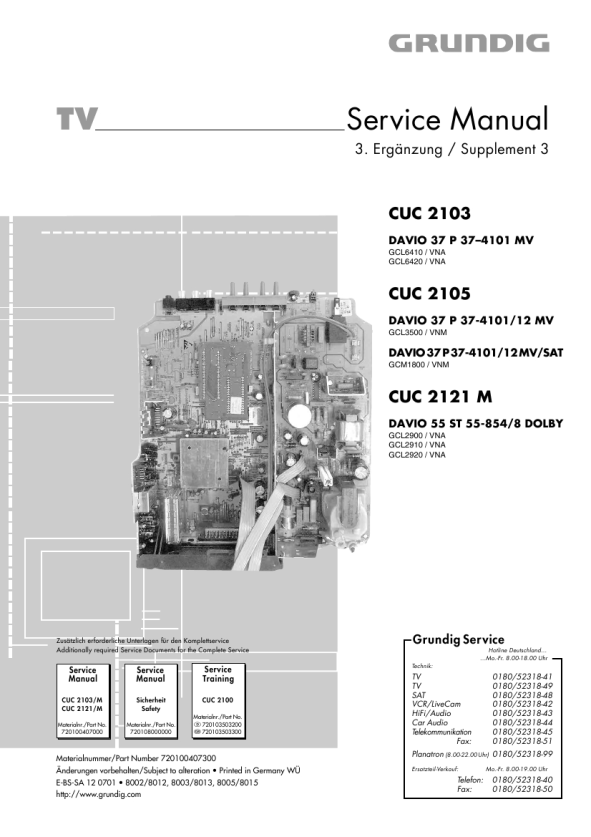

CUC 2103, 2105, 2121 M
GRUNDIG Service
Standby 4W 2W 3W ca. 5W
|
|
|
> |
|
