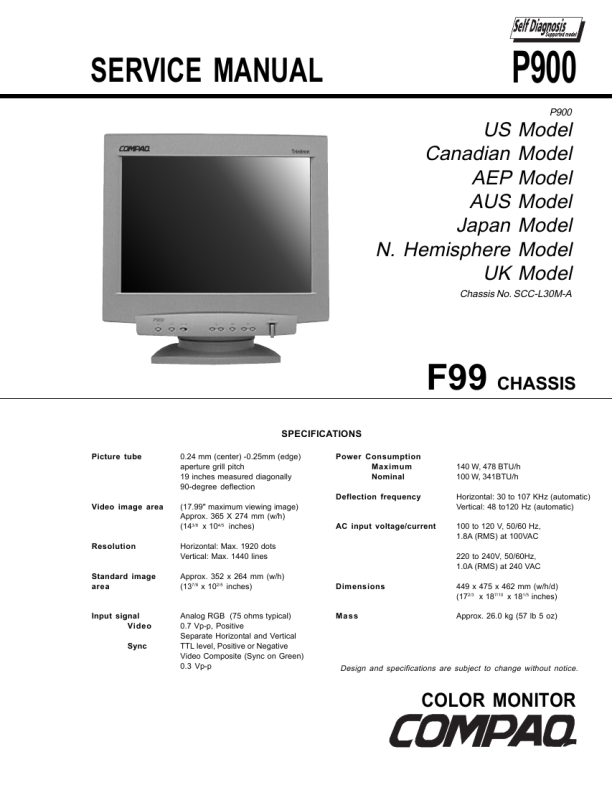

P900
1-4. PICTURE TUBE REMOVAL
2 A board 7 Two screws
(BVTP 4 x 16)
3 Neck assembly
4 Deflection yoke 5 Two screws
(BVTP 4 x 16) 6 Four screws (Tapping screw 5)
9 Picture tube shield
Demagnetization coil Tension spring
1 Anode-cap
8 Stand
assembly (D board)
Cushion
REMOVAL OF THE ANODE-CAP
WARNING: Short circuit the anode of the picture tube and the anode-cap to the metal chassis, CRT shield or carbon painted on the CRT, after removing the anode.
REMOVAL PROCEDURES
1. Turn up one side of the rubber cap in the direction indicated by arrow .
2. Use your thumb to pull the rubber cap firmly in the direction indicated by arrow .
3. When one side of the rubber cap separates from the anode button, the anode-cap can be removed by turning the rubber cap and pulling it in the direction of arrow .
HOW TO HANDLE AN ANODE-CAP
1. Do not use sharp objects which may cause damage to the surface of the anode-cap. 2. Do not squeeze the rubber covering too hard to avoid damaging the anode-cap. A material fitting called a shatter-hook terminal is built into the rubber. 3. Do not force turn the foot of the rubber cover. This may cause the shatter-hook terminal to protrude and damage the rubber.
�6�
|
|
 |
> |
|
