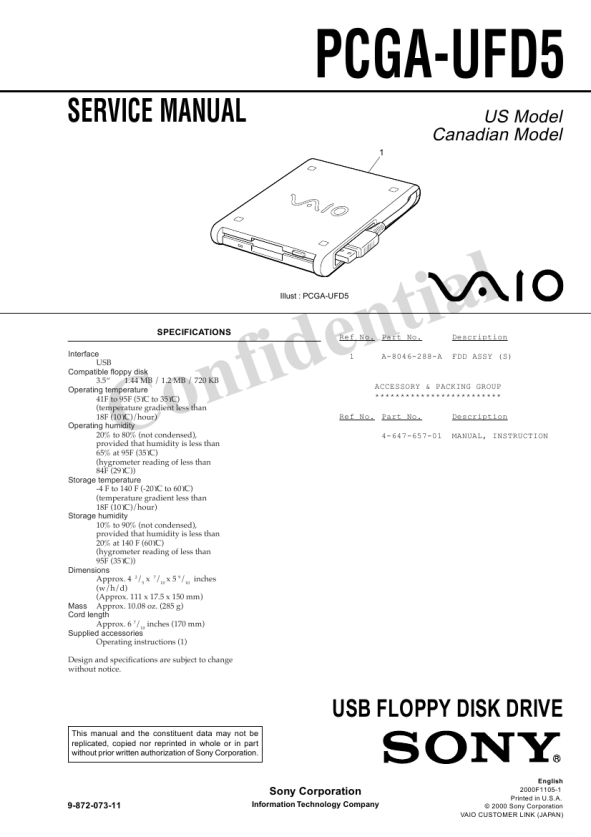

SERVICE MANUAL
PCGA-UFD5
US Model Canadian Model
1
Interface USB Compatible floppy disk 3.5� 1.44 MB / 1.2 MB / 720 KB Operating temperature 41F to 95F (5°C to 35°C) (temperature gradient less than 18F (10°C)/hour) Operating humidity 20% to 80% (not condensed), provided that humidity is less than 65% at 95F (35°C) (hygrometer reading of less than 84F (29°C)) Storage temperature -4 F to 140 F (-20°C to 60°C) (temperature gradient less than 18F (10°C)/hour) Storage humidity 10% to 90% (not condensed), provided that humidity is less than 20% at 140 F (60°C) (hygrometer reading of less than 95F (35°C)) Dimensions Approx. 4 2/ x 7/ x 5 9/ inches 5 10 10 (w/h/d) (Approx. 111 x 17.5 x 150 mm) Mass Approx. 10.08 oz. (285 g) Cord length Approx. 6 7/ inches (170 mm) 10 Supplied accessories Operating instructions (1)
tial en id f on C
SPECIFICATIONS
Illust : PCGA-UFD5
Ref No. Part No. 1
Description FDD ASSY (S)
A-8046-288-A
ACCESSORY & PACKING GROUP *************************
Ref No. Part No. 4-647-657-01
Description MANUAL, INSTRUCTION
Design and specifications are subject to change without notice.
USB FLOPPY DISK DRIVE
This manual and the constituent data may not be replicated, copied nor reprinted in whole or in part without prior written authorization of Sony Corporation.
English 2000F1105-1 Printed in U.S.A. © 2000 Sony Corporation VAIO CUSTOMER LINK (JAPAN)
Sony Corporation
9-872-073-11
Information Technology Company
|
|
|
> |
|
