There are currently no product reviews.
 ;
Exactly what was needed to assess the product - excellent value and great service
 ;
Nice to have the service manual for the Sony DCR-TRV345E now. The document is of excellent quality.
;
MACKIE HR824 26 pages English-only Service Manual contains:
1) HR824 technical overview with the description of front and rear panel switches.
2) HR824 specs
3) Block Diagram
4) Wiring Diagram
5) Packaging management
6) Spare part & final assembly list (for PCB rev A and B) + exploded view
7) Test Procedures (where, how to measure voltage...) including Test Point diagram on the PCB.
8) IC and Transistor charts.
Excellent guide: very clear, good scan quality enabling us to print readable diagram :-)
Note:
Mackie HR824 make extensive use of surface mount devices (SMD). Service on the HR824 must
only be undertaken by experienced service technicians with the right tools, experience and patience to perform surface mount rework when needed.
;
This Service manual is very well scanned and its clean to read, no any anti-theft words that un-english could understand. I got my CCD600 working with this manual and it´s clear shematics :)
;
I was very pleased with the service provided and was surprised at how good the quality was of the manual. I thought it may be a third generation copy or so, but it is as good as the websites that charge 3 times this much. I repair some electronics for family and friends without charge, so this is perfect for me. Thank you very much.
� LED test... Tests the LED. This test turns on one LED after another. The person conducting the test must visually check whether each LED is normal or not. � Main Memory test... Tests the main memory. The test is exited automatically when all test items end normally. � Main System test... Tests the fundamental functions of the CPU, etc. The test is exited automatically when all test items end normally. � FAN test... Tests the fan. Tests whether the fan rotates and stops. � Touch pad test... Tests the touch pad. Tests whether the cursor moves, and whether right-clicking and left-clicking function properly. � Serial loopback test... Performs the loopback test of the serial port. Connect the port replicator and the loopback tool to the serial port. � Parallel loopback test... Performs the loopback test of the parallel port. Connect the port replicator and loopback tool to the parallel port. � PC card Slot test... Tests the PC card slot. Implements the 16-bit/card-bus test for the two slots of the main unit. � Video test... Tests the video signal. Several video patterns appear every time the key is pressed. The person conducting the test must visually check whether the patterns appear properly. � PPK test... Tests the PPK. If the test is not completed within the specified time, an error is triggered due to the time-out set for this test. When two or more PPKs are set, follow the instructions that appear on the screen. � GUID (IEEE1394) test... Displays the GUID value, and judges whether the value on the display is appropriate.
Confidential

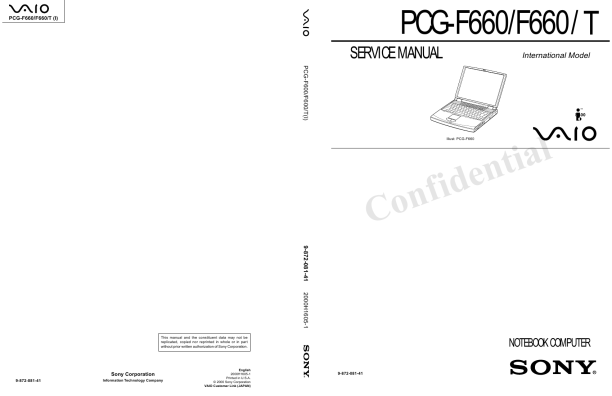

2-5 PCG-F660/F660/T (I)
|
|
|
> |
|
