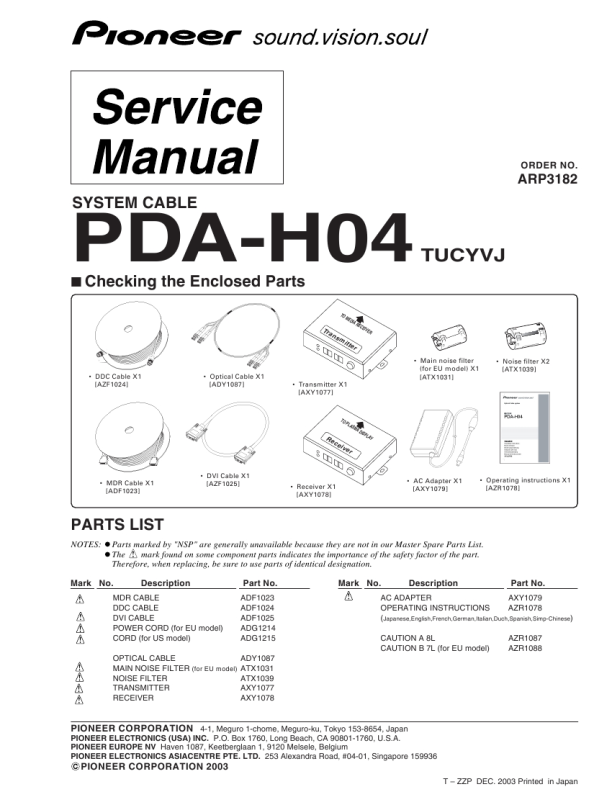

ORDER NO.
ARP3182
SYSTEM CABLE
PDA-H04
7 Checking the Enclosed Parts
TO M ED IA
TUCYVJ
Tr
REC
a
ns m
EIV
ER
itte
r
� Main noise filter (for EU model) X1 [ATX1031] � Noise filter X2 [ATX1039]
� DDC Cable X1 [AZF1024]
� Optical Cable X1 [ADY1087]
� Transmitter X1 [AXY1077]
TO P
LAS
MA
Re
DIS
PL
c
AY
ei
ve
r
� MDR Cable X1 [ADF1023]
� DVI Cable X1 [AZF1025]
� Receiver X1 [AXY1078]
� AC Adapter X1 [AXY1079]
� Operating instructions X1 [AZR1078]
PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Description Part No.
ADF1023 ADF1024 ADF1025 ADG1214 ADG1215 ADY1087 ATX1031 ATX1039 AXY1077 AXY1078
Mark No.
Mark No.
Description
Part No.
MDR CABLE DDC CABLE DVI CABLE POWER CORD (for EU model) CORD (for US model) OPTICAL CABLE MAIN NOISE FILTER (for EU model) NOISE FILTER TRANSMITTER RECEIVER
AC ADAPTER AXY1079 OPERATING INSTRUCTIONS AZR1078 (Japanese,English,French,German,Italian,Duch,Spanish,Simp-Chinese) CAUTION A 8L CAUTION B 7L (for EU model) AZR1087 AZR1088
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
T � ZZP DEC. 2003 Printed in Japan
|
|
|
> |
|
