1
2
3
4
No power
A
Note: � MR: Media Receiver � Transmitter, receiver: Transmitting- or receiving-side repeater box, respectively � : Repair for servicing
The power to the panel is turned off immediately after the power is turned on. Yes Is the transmitter connected to the MR and the receiver to the panel? Yes
B
No
Connect the transmitter to the MR and the receiver to the panel.
Are the DVI cables properly connected? Yes Are the MDR cables properly connected? Yes Are the PWR (power) LEDs of the transmitter and receiver lit? Yes
No
Properly connect the DVI cables.
No
Properly connect the MDR cables.
No
Are the AC adaptors connected to the transmitter and receiver? Yes Replace the AC adaptors.
No
Connect the AC adaptors.
C
Are all the LED except PWR of the transmitter and receiver lit? Yes Does the panel operate properly if the PDA-H05 is replaced with a standard cable?
D
No
See the flowchart for "No image and no sound."
No
Replace the MR or panel.
Yes Replace the repeater box.
E
F
6
1 2

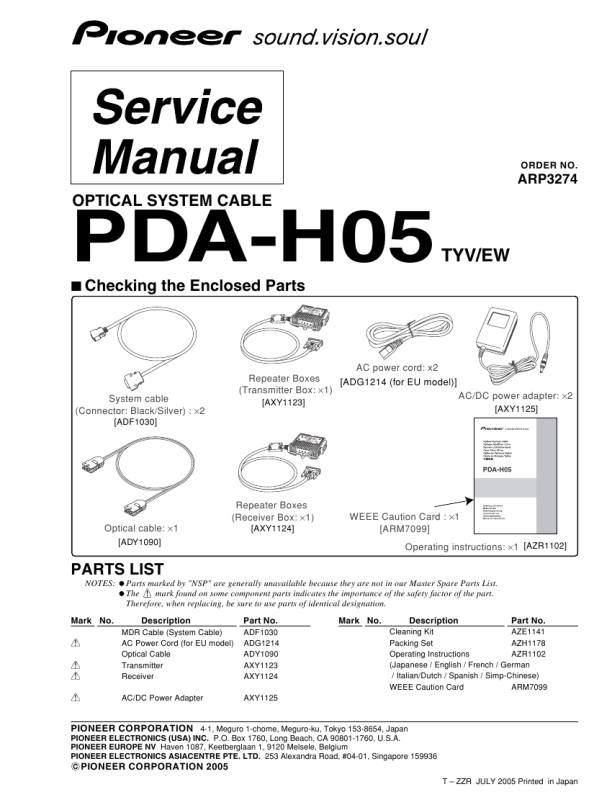

PDA-H05
3 4
|
|
|
> |
|
