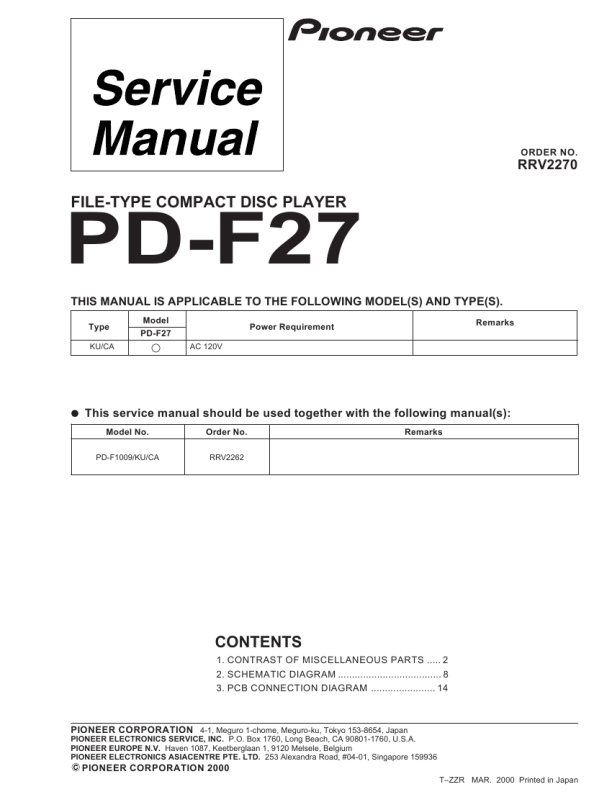

PD-F27
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES : ÷ Parts marked by � NSP � are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 � = 56 � 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k � = 47 � 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 � = R50 ...................................................................... RN2H � 5 0 K 1 � = 1R0 ......................................................................... RS1P 1 � 0 K When there are 3 effective digits (such as in high precision metal film resistors). 5.62k � = 562 � 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F
Ex. 2
7 CONTRAST TABLE
PD-F27/KU/CA and PD-F1009/KU/CA are constructed the same except for the following:
Ref. No. Part No. Mark Symbol and Description PD-F1009 /KU/CA PCB ASSEMBLIES
NSP P7- 1 MOTHER BOARD ASSY MAIN BOARD ASSY KEY BOARD ASSY SR BOARD ASSY POWER BOARD ASSY DOOR MOTOR BOARD ASSY DOOR SW BOARD ASSY VOLUME BOARD ASSY DISPLAY BOARD ASSY CONTROL BOARD ASSY SUB BOARD ASSY POWER BOARD ASSY DOOR MOTOR BOARD ASSY DOOR SW BOARD ASSY VOLUME BOARD ASSY DISPLAY BOARD ASSY CONTROL BOARD ASSY HEADPHONE BOARD ASSY LED BOARD ASSY PWM2294 PWZ4036 Not used PWZ4042 PWZ4048 PWZ4061 PWZ4062 PWZ4063 PWZ4053 PWZ4057 Not used Not used Not used Not used Not used Not used Not used Not used Not used PWM2260 PWZ3833 PWZ3838 Not used Not used Not used Not used Not used Not used Not used PWX1586 PWZ3858 PWZ3863 PWZ3865 PWZ3864 PWZ3844 PWZ3849 PWZ3861 PWZ3867
PD-F27 /KU/CA
Remarks
No.1
P7- 2 P7-27 P7-28 P9- 7 P13-1 P13-2 NSP NSP NSP
NSP P7- 2 P7-27 P7-28 P9- 7 P13-1 P13-2 NSP NSP NSP NSP NSP
No.2 No.3
PACKING
P5- 3 P5- 6 P5- 7 P5-12 Packing Case Operating lnstructions(English) Remote Control Unit Warranty Card Side Panel Sheet PHG2397 PRB1300 PWW1168 ARY7045 Not used PHG2413 PRB1304 PWW1139 ARY1026 AMR7284
NSP NSP
No.4
EXTERIOR
P7- 9 P7-15 P7-17 Rear Base CR Spacer Hood Insulator CR Lens PNA2529 PNW2961 PNW2793 AMR7198 Not used PNA2546 Not used PNW2872 PNW2766 PNW2816
No.5 No.6
2
|
|
|
> |
|
