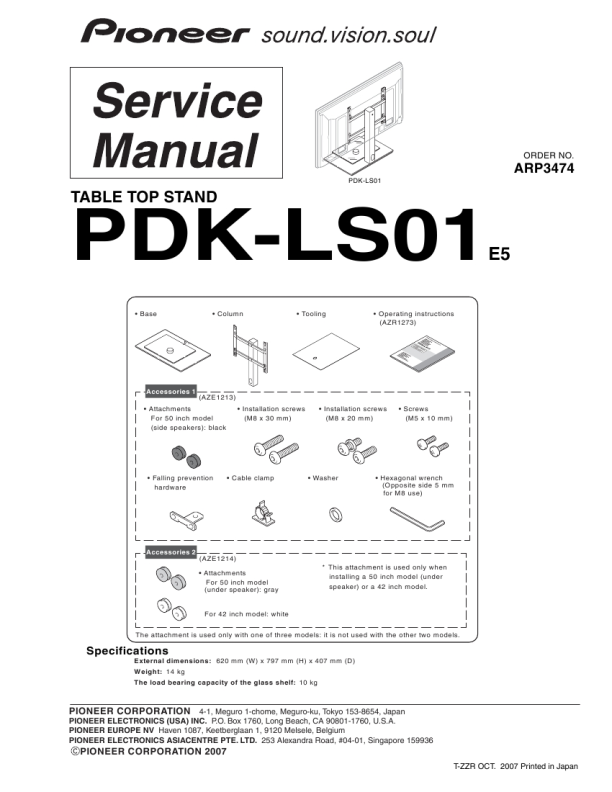

ORDER NO.
ARP3474
PDK-LS01
TABLE TOP STAND
PDK-LS01E5
� Base � Column � Tooling � Operating instructions (AZR1273) Accessories 1 (AZE1213) � Installation screws (M8 x 30 mm) � Installation screws (M8 x 20 mm) � Screws (M5 x 10 mm) � Attachments For 50 inch model (side speakers): black
� Falling prevention hardware
� Cable clamp
� Washer
� Hexagonal wrench (Opposite side 5 mm for M8 use)
Accessories 2
(AZE1214) � Attachments For 50 inch model (under speaker): gray * This attachment is used only when installing a 50 inch model (under speaker) or a 42 inch model.
For 42 inch model: white The attachment is used only with one of three models: it is not used with the other two models.
Specifications
External dimensions: 620 mm (W) x 797 mm (H) x 407 mm (D) Weight: 14 kg The load bearing capacity of the glass shelf: 10 kg
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
T-ZZR OCT. 2007 Printed in Japan
|
|
|
> |
|
