EXPLODED VIEWS AND PARTS LIST
NOTES:
A
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
B
C
D
MECHANISM PARTS
Mark No.
M01 M02 M03
PRINTED & PACKING MATERIALS
Part No.
29HS0831 29HS0841 29HS0851
Description
Stand L Assy P61 Stand R Assy P61 Stand C Assy P61
Mark No.
PK01 PK02 PK03 PK04 PK05 PK06 PK07 PK08 PK09 PK10
Description
Screw Driver Pillar T P61 Pillar B P61 Carton Box (PDK-TS06) Carton Box (PX-61XM1U-S1) Cushion Box (P61ST) Protection Sheet (ST B 61) Protection Sheet (ST C 61) PL-CPIMS*6*50*15KFE CBIMS*4*10*15BFE
Part No.
29BS0411 29M01101 29M01111 29M01081 29M00191 29M01121 29M00801 29M00811 29N01551 29N01561 7S801661 29J01371
E
PK11 User's Manual PK12 Foot P61
F
2
1 2

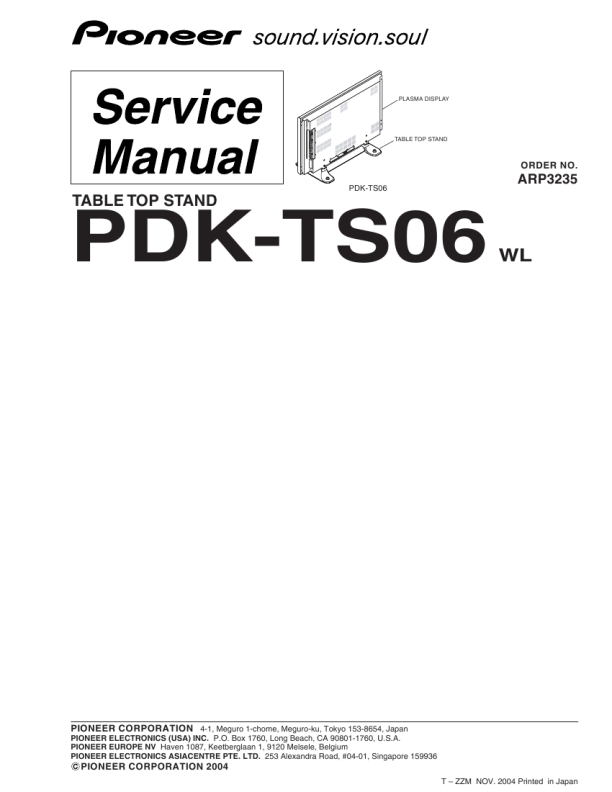

PDK-TS06
3 4
|
|
|
> |
|
