1
2
3
4
1.EXPLODED VIEW
A
NOTES:
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
1 Base cover x 1
2 Stand pipes
(left and right, interchangeable) x 2
3 Operating instructions
x1
B
5 Screws (4 mm x 8 mm) x 4
4 Screw ASSY
C
6 Installation bolts 1
(M8 x 20 mm) x 2
7 Installation bolts 2
(M8 x 40 mm) x 2
8 Falling prevention
bolts x 2
9 Hexagonal wrench x 1
(Opposite side 5 mm for M8 use)
D
0 Stand Pipe Cap 2 Stand Pipe
- Case Leg
PARTS LIST
E
Mark No.
1 2 3
Description
Part No.
Mark No.
8 NSP 9 10 11
Description
Part No.
ABA1339 ����� AZN2658 AZN2663 AZH1302
Base cover AZN2730 Stand pipe AZN2727 Operating instructions AZR1233 (Japanese, English, French, German, Italian, Dutch, Spanish, Chinese) Screw ASSY Screw (4 mm x 8 mm) Instllation bolts1 (M8 x 20 mm) Instllation bolts2 (M8 x 40 mm) AZE1194 ����� ����� �����
Falling prevention bolt Hexagonal wrench Stand Pipe Cap Case Leg Packing Set
NSP NSP NSP F
4 5 6 7
2
1 2

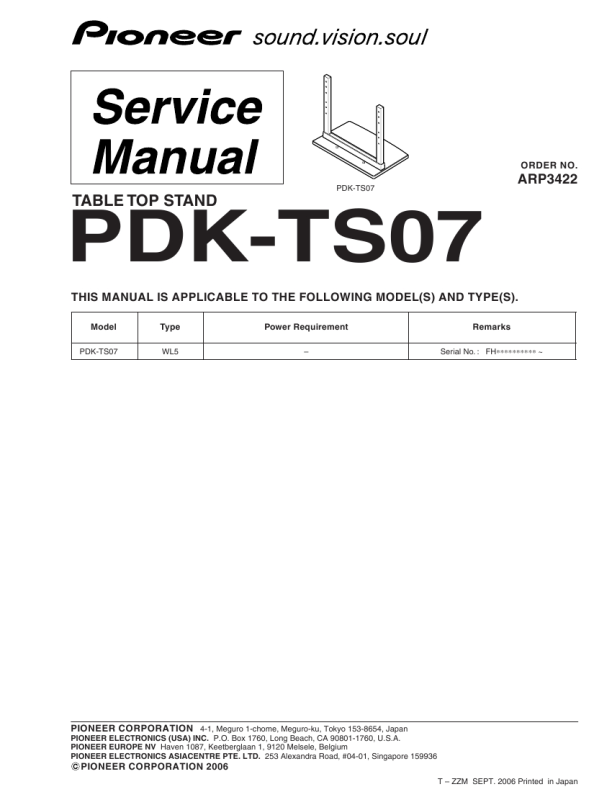

PDK-TS07
3 4
|
|
|
> |
|
