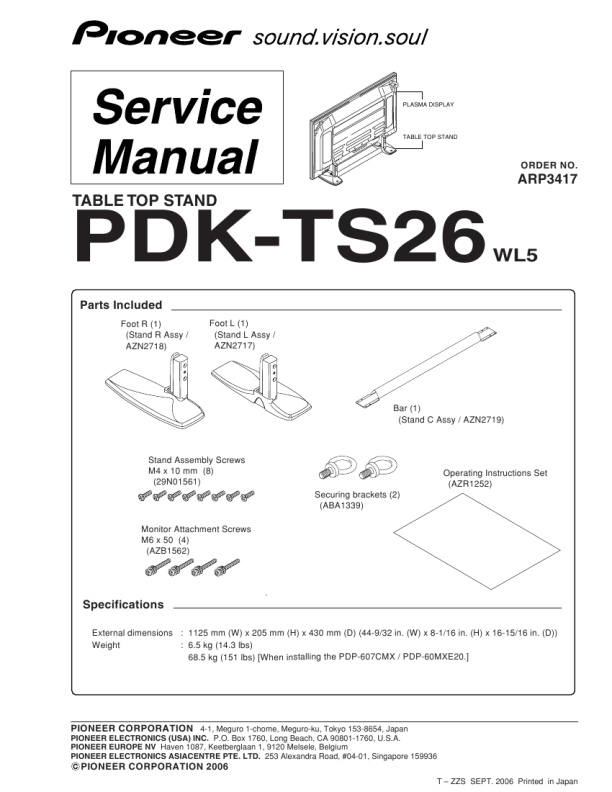

PLASMA DISPLAY
TABLE TOP STAND
ORDER NO.
ARP3417
TABLE TOP STAND
PDK-TS26
Parts Included
Foot R (1) (Stand R Assy / AZN2718) Foot L (1) (Stand L Assy / AZN2717)
WL5
Bar (1) (Stand C Assy / AZN2719)
Stand Assembly Screws M4 x 10 mm (8) (29N01561)
Operating Instructions Set (AZR1252)
Securing brackets (2) (ABA1339)
Monitor Attachment Screws M6 x 50 (4) (AZB1562)
Specifications
External dimensions : 1125 mm (W) x 205 mm (H) x 430 mm (D) (44-9/32 in. (W) x 8-1/16 in. (H) x 16-15/16 in. (D)) Weight : 6.5 kg (14.3 lbs) 68.5 kg (151 lbs) [When installing the PDP-607CMX / PDP-60MXE20.]
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2006
T � ZZS SEPT. 2006 Printed in Japan
|
|
|
> |
|
