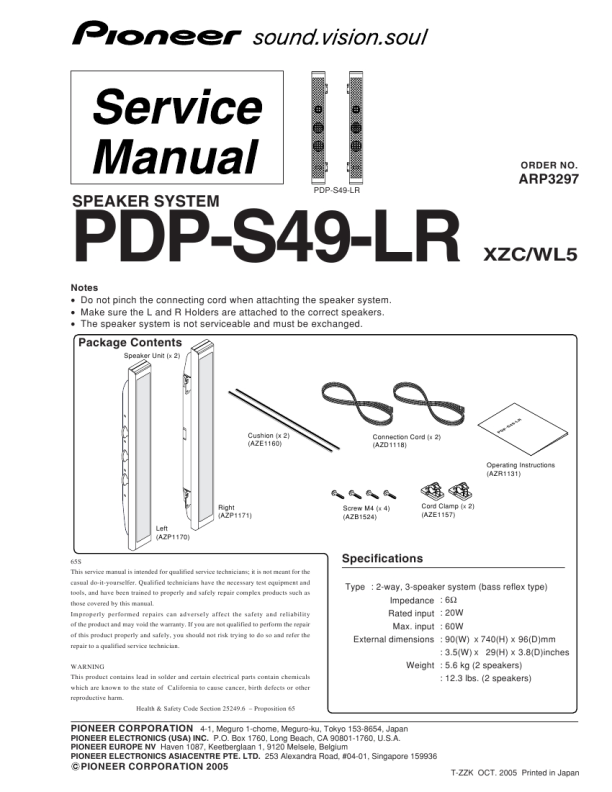

ORDER NO.
ARP3297
PDP-S49-LR
PDP-S49-LR
Notes � Do not pinch the connecting cord when attachting the speaker system. � Make sure the L and R Holders are attached to the correct speakers. � The speaker system is not serviceable and must be exchanged.
SPEAKER SYSTEM
XZC/WL5
Package Contents
Speaker Unit (X 2)
Cushion (x 2) (AZE1160)
Connection Cord (X 2) (AZD1118)
Operating Instructions (AZR1131)
Right (AZP1171) Left (AZP1170)
Screw M4 (X 4) (AZB1524)
Cord Clamp (X 2) (AZE1157)
P D S 4 R L
65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 � Proposition 65
Specifications
Type : 2-way, 3-speaker system (bass reflex type) Impedance : 6� Rated input : 20W Max. input : 60W External dimensions : 90(W) X 740(H) X 96(D)mm : 3.5(W) X 29(H) X 3.8(D)inches Weight : 5.6 kg (2 speakers) : 12.3 lbs. (2 speakers)
