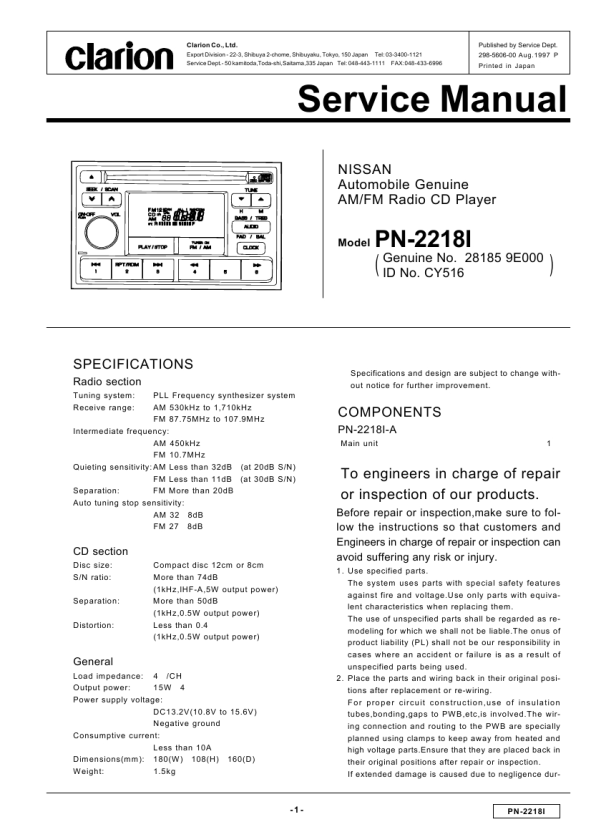

Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 03-3400-1121 Service Dept.- 50 kamitoda,Toda-shi,Saitama,335 Japan Tel: 048-443-1111 FAX:048-433-6996
Published by Service Dept. 298-5606-00 Aug.1997 P Printed in Japan
Service Manual
NISSAN Automobile Genuine AM/FM Radio CD Player
Model
PN-2218I ( Genuine No. 28185 9E000 )
ID No. CY516
â� SPECIFICATIONS
Radio section
Tuning system: Receive range: PLL Frequency synthesizer system AM 530kHz to 1,710kHz FM 87.75MHz to 107.9MHz Intermediate frequency: AM 450kHz FM 10.7MHz Quieting sensitivity: AM Less than 32dBμ(at 20dB S/N) FM Less than 11dBμ(at 30dB S/N) Separation: FM More than 20dB Auto tuning stop sensitivity: AM 32±8dBμ FM 27±8dBμ
� Specifications and design are subject to change with-
out notice for further improvement.
â� COMPONENTS
PN-2218I-A
Main unit
������
1
â� To engineers in charge of repair
or inspection of our products.
Before repair or inspection,make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury.
1. Use specified parts. The system uses parts with special safety features against fire and voltage.Use only parts with equivalent characteristics when replacing them. The use of unspecified parts shall be regarded as remodeling for which we shall not be liable.The onus of product liability (PL) shall not be our responsibility in cases where an accident or failure is as a result of unspecified parts being used. 2. Place the parts and wiring back in their original positions after replacement or re-wiring. For proper circuit construction,use of insulation tubes,bonding,gaps to PWB,etc,is involved.The wiring connection and routing to the PWB are specially planned using clamps to keep away from heated and high voltage parts.Ensure that they are placed back in their original positions after repair or inspection. If extended damage is caused due to negligence dur-
CD section
Disc size: S/N ratio: Separation: Distortion: Compact disc 12cm or 8cm More than 74dB (1kHz,IHF-A,5W output power) More than 50dB (1kHz,0.5W output power) Less than 0.4� (1kHz,0.5W output power)
General
Load impedance: 4Ω/CH Output power: 15W�4 Power supply voltage: DC13.2V(10.8V to 15.6V) Negative ground Consumptive current: Less than 10A Dimensions(mm): 180(W)�108(H)�160(D) Weight: 1.5kg
-1-
PN-2218I
|
|
|
> |
|
