Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Published by Service Dept. 298-? May.2006 Printed in Japan

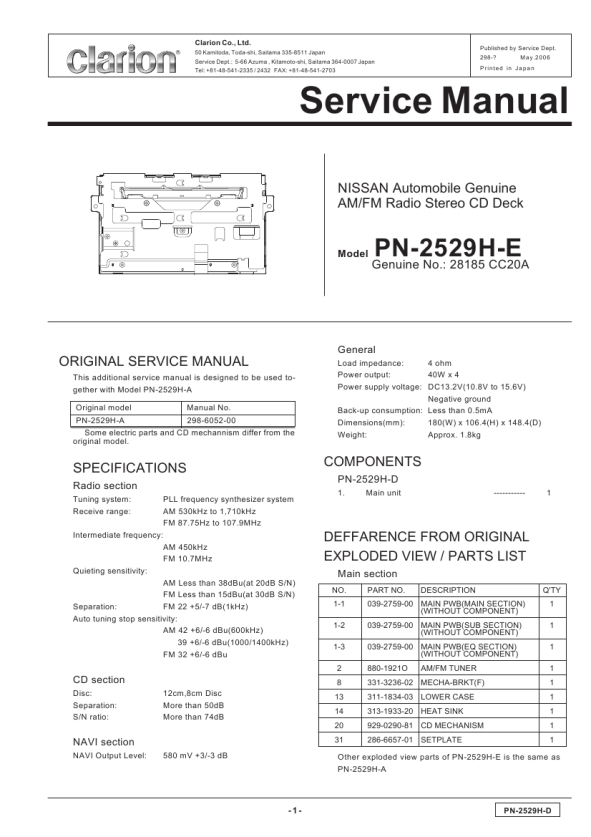

Service Manual
NISSAN Automobile Genuine AM/FM Radio Stereo CD Deck
Model
PN-2529H-E Genuine No.: 28185 CC20A
General
ORIGINAL SERVICE MANUAL
This additional service manual is designed to be used together with Model PN-2529H-A Original model Manual No.
Load impedance: 4 ohm Power output: 40W x 4 Power supply voltage: DC13.2V(10.8V to 15.6V) Negative ground Back-up consumption: Less than 0.5mA Dimensions(mm): Weight: 180(W) x 106.4(H) x 148.4(D) Approx. 1.8kg
PN-2529H-A 298-6052-00 Some electric parts and CD mechannism differ from the original model.
SPECIFICATIONS
Radio section
PLL frequency synthesizer system AM 530kHz to 1,710kHz FM 87.75Hz to 107.9MHz Intermediate frequency: AM 450kHz FM 10.7MHz Quieting sensitivity: AM Less than 38dBu(at 20dB S/N) FM Less than 15dBu(at 30dB S/N) FM 22 +5/-7 dB(1kHz) Tuning system: Receive range:
COMPONENTS
PN-2529H-D
1. Main unit ----------1
DEFFARENCE FROM ORIGINAL EXPLODED VIEW / PARTS LIST
Main section
NO. 1-1 1-2 1-3 2 PART NO. DESCRIPTION Q'TY 1 1 1 1 1 1 1 1 1 039-2759-00 MAIN PWB(MAIN SECTION) (WITHOUT COMPONENT) 039-2759-00 MAIN PWB(SUB SECTION) (WITHOUT COMPONENT) 039-2759-00 MAIN PWB(EQ SECTION) (WITHOUT COMPONENT) 880-1921O AM/FM TUNER 8 331-3236-02 MECHA-BRKT(F) 311-1834-03 LOWER CASE 313-1933-20 HEAT SINK 929-0290-81 CD MECHANISM 286-6657-01 SETPLATE
Separation:
Auto tuning stop sensitivity: AM 42 +6/-6 dBu(600kHz) 39 +6/-6 dBu(1000/1400kHz) FM 32 +6/-6 dBu
CD section
Disc: Separation: S/N ratio: 12cm,8cm Disc More than 50dB More than 74dB
13 14 20
NAVI section
NAVI Output Level: 580 mV +3/-3 dB
31
Other exploded view parts of PN-2529H-E is the same as PN-2529H-A
-1-
PN-2529H-D
|
|
|
> |
|
