6-3. LINK REMOVAL OF EXPANSION BAND

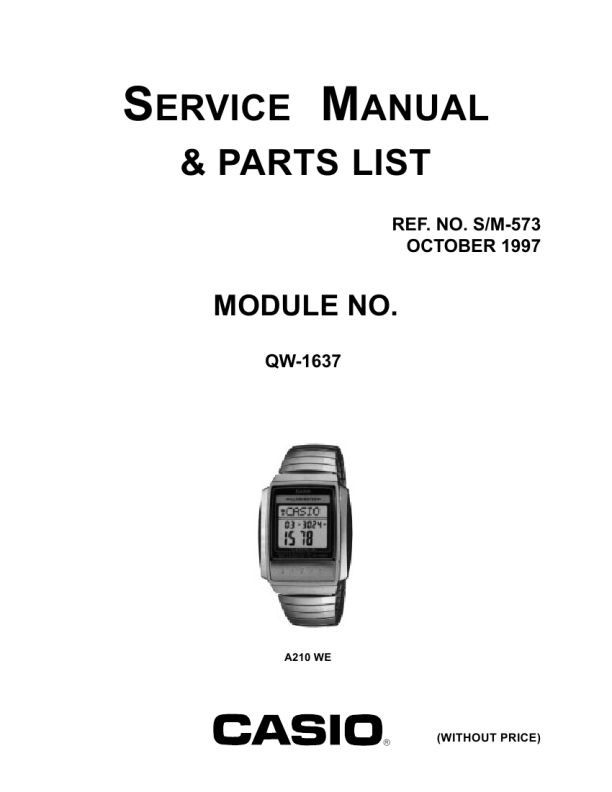

On the model A210WE which the module without movement QW-1637 is used, expansion type band is employed. And how to make link removal of the expansion band is as follows. 1. Bend and make flat the thin plates which is covering the band with minus precision screw driver. Both upper and lower plates have to be bended. 2. Take out the pins from inside of the band. Be sure to take out the pins from both side of the band. Then the band will be separated. 3. Repeat the above 1 and 2 procedure, and make the link removal. 4. After the length of the band is adjusted, insert again the pins on both side in order to connect again the band. 5. Bend vertically the thin plates of the band.
Precision minus screw driver Pin Thin flat plate
Expansion band
-9-
|
|
|
> |
|
