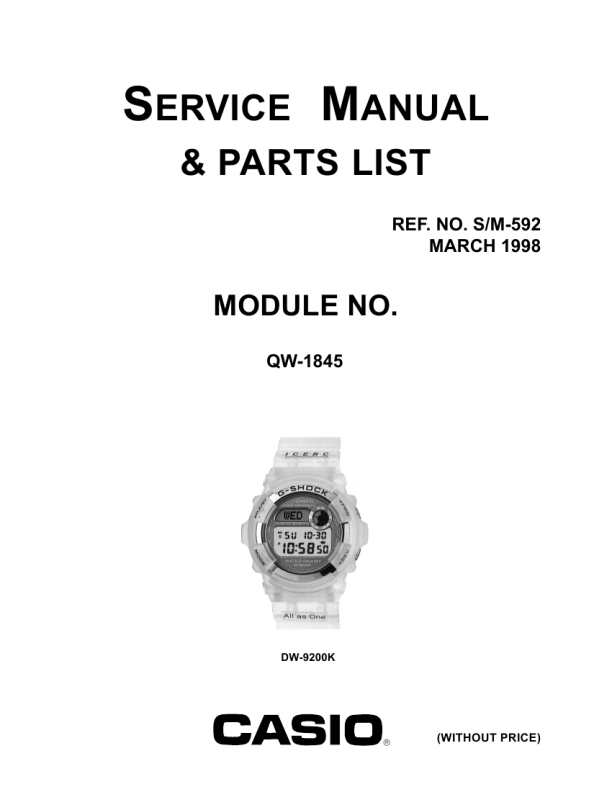

5. PARTS LIST : QW-1845
Note: 1. Prices and specifications are subject to change without prior notice. 2. Spare parts are classified as follows according to their importance in after-sales service. A Rank ............................... Very Important B Rank ............................... Important C Rank ............................... Less important 3. Batteries in Bulk pack on the tray will be supplied from our Overseas Spare Parts Section under charge basis. Batteries in Brister pack will be supplied from our Sales Department. 4. As for order/supply of spare parts, refer to the separate publication �GUIDEBOOK for spare parts supply�.
Item Code No. Parts name Specification Applicable QR
7073 1181
MODULE/WITHOUT MOVEMENT
QW-1845-01
7073 1191 7073 1201 1a 1b 1c 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 7001 2830 7001 2831 7001 2832 7020 5826 7240 9990 7103 3866 7103 4530 7103 7485 2895 1358 7103 0458 7020 0481 7020 5413 7101 5609 7100 7917 7110 1177 7103 7450 7105 5274 7101 1151 7233 1960 7211 9631 7211 0064 7231 1856 7234 1397 7234 1085 7010 4532 7231 1773 7231 0861 7233 1995 7233 2376 7230 0616 7236 0224
MODULE/WITHOUT MOVEMENT MODULE/WITHOUT MOVEMENT LCD LCD LCD EL PCB ASSY CAPACITOR/CHIP CAPACITOR/CHIP CAPACITOR/CHIP CAPACITOR/TANTALUM CAPACITOR/TRIMMER COIL COIL DIODE INVERTER OSCILLATOR/QUARTZ RESISTOR/CHIP SENSOR/TILT TRANSISTOR/MOLD CUSHION/1545 CUSHION/506 CUSHION/6 HOLDER/BATTERY 1405 HOUSING/1545-1 HOUSING/1545-2 INTERCONNECTOR/1556 PLATE/MAIN 1545 PLATE/TERMINAL 1288-2 SHEET/INSULATION 1545 SPACER/PRINTED 1845 SPRING/COIL 1199-1 TERMINAL/BATTERY - 1199 BATTERY/LITHIUM
QW-1845-03 QW-1845-04 C1845-01P C1845-02P C1845-03P EL-1545-A-01 Q252723*2 GRM40-002F104P25PT CM316Y5V684P25AT GRM40B472K50PT F950J106MSAAQ2 TSF-2L2-120-4.2 OL3.3X1.6DR-01TB ELT3K104B MA1010000L MIP803000L DT-26S04 ERJ6GEYF364V TS-2418-L 2SD1824(TX) Q455246A-1 Q49364-1 Q4914-1 Q352952B-1 Q150444C-1 Q150445A-1 Q455365-1 Q150449B-1 Q450360-1 Q456025-1 Q459840-1 Q437728B-1 Q341452C-1 CR2016
DW-9200K-2A/2AV/2B/ 2BV/7/7V/8/ 8V/9B/9BV DW-9200K-4/4V DW-9200K-9A/9AV QW-1845-01 QW-1845-03 QW-1845-04 QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common QW-1845 Common 1 1 1 1 1 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 2 1 1
A
A A A A A A A B B B B B B B B B B B B B C C C C C C C C C C C B C
*For the price, new parts and minimum quantity of the above parts, please refer to the Parts Price List P.P.L-532.
Notes:
Q � Used quantity R � Rank
-7-
|
|
|
> |
|
