The service manual is a good quality scan of the Panasonic NV-850, which is electrically identical to the Philips VR 6920, but mecanically just nearly.

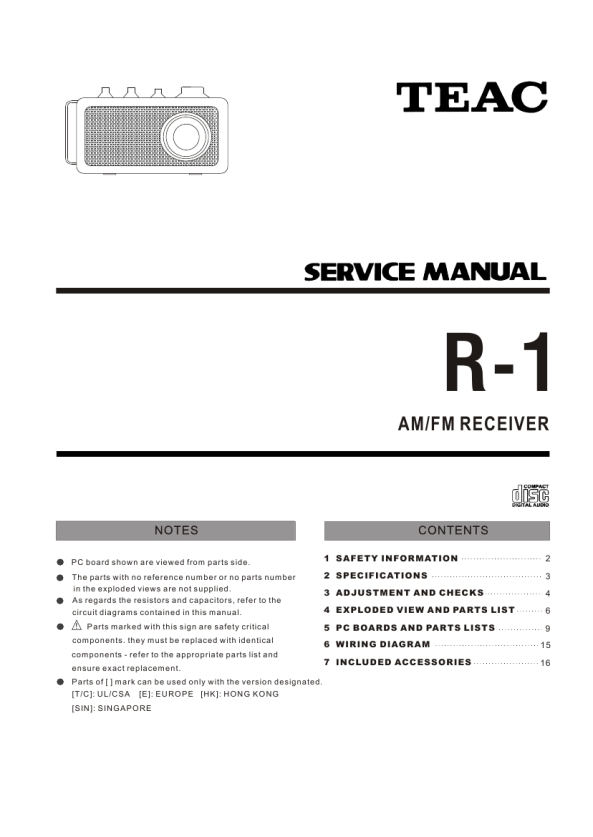

R-1
3 ADJUSTMENTS AND CHECKS
3-1 TUNER SECTION
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1-1 FM adjustment
1. Set the function switch to the FM position. 2. Connect the signal generator output through a 75 ohm dummy antenna to "ANT" on TUNER PCB. 3. Connect the oscilloscope to the speaker terminal. 4. Set the signal generator as listed in the alignment chart.
3-1-2 AM adjustment
1. Set the function switch to the AM position. 2. Connect the test loop antenna across the output of the signal generator. 3. Connect the oscilloscope to the speaker terminal. 4. Set the signal generator as listed in the alignment chart.
3-2 Adjustment and Test Points
L107 AM ANT
L106 L105 C4 C3 C2 C1
L104
PVC1
L102
L103
TUNER PCB
4
 $4.99 R-1 TEAC
