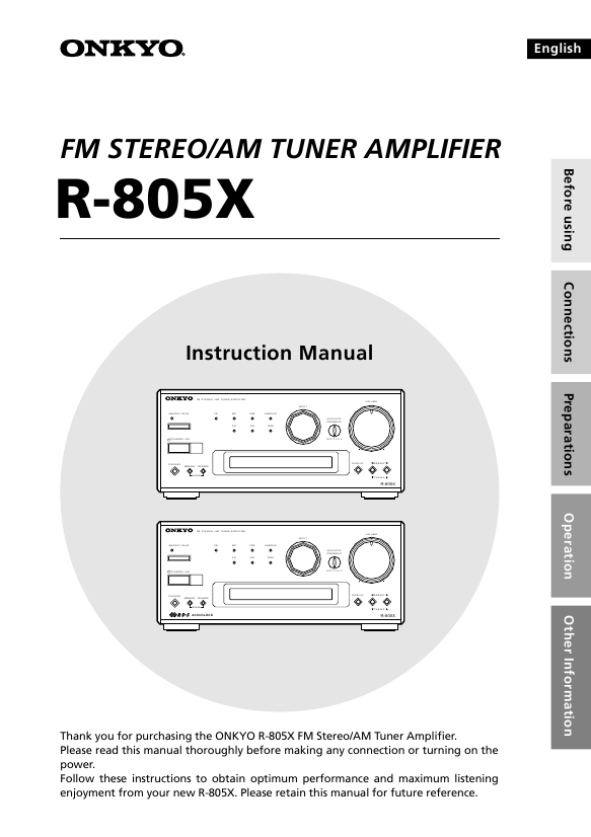

ONKYO R805X
Service Manual

Using the timer
STANDBY/ ON CLOCK SLEEP GRAPHIC EQ EFFECT MODE PRESET
FM

TUNER INPUT
AM

TAPE

PAUSE / STEP

DVD

REPEAT

SCROLL

MD

PLAY MODE CLEAR

REC

REPEAT

RANDOM

CD

MEMORY

CLEAR DISC

REPEAT PLAY MODE

CDR

TIMER UP�/DOWN� ENTER

TONE

CLEAR

REC

MUTING TIMER

1 4

2 5 8

3 6 9
ACOUSTIC PRESENCE
VOLUME

UP/DOWN

Number buttons

7
ENTER

--/- - -

10 / 0

Changing the WEEKDAY and WEEKEND settings
You can de�ne or change which day is WEEKDAY or WEEKEND. You can also de�ne the day as both WEEKDAY and WEEKEND in order to program two timer settings on the same day. The initial factory settings are: WEEKDAY : Monday � Friday WEEKEND : Saturday and Sunday

4 Press the ENTER button repeatedly to
display the �ashing bar cursor of the day you wish to select, or simply press the corresponding number buttons.
ENTER

Sunday Monday Tuesday

Saturday Friday Thursday Wednesday

The number button on the remote controller: 1:S (Sunday) 5:T (Thursday) 2:M (Monday) 6:F (Friday) 3:T (Tuesday) 7:S (Saturday) 4: W (Wednesday) Note To use the number buttons, select the 24hour display. If you select the 12-hour display, you cannot use the number buttons to set the day.

1 Press
TIMER

the TIMER button repeatedly

until �DAY SET� appears on the display, then press the ENTER button.
ENTER

5 Press the UP � or DOWN � button to
display the desired day of the week, and press the ENTER button.

2 Press the UP � or DOWN � button to
select �WEEKEND� or �WEEKDAY�.
�END� or �DAY� �ashes.

UP/DOWN

ENTER UP/DOWN

3 Press the ENTER button.
The current WEEKDAY or WEEKEND setting will be displayed.
ENTER

Pressing the UP � or DOWN � button repeatedly toggles between the day indication and the bar cursor (.....).

6 Press the ENTER button repeatedly to
display the �ashing character or bar cursor at the right end and press the ENTER button, the unit completes the setting.

38
