Home >> AIWA >> RM200 Service Manual

 0 item(s) in your cart

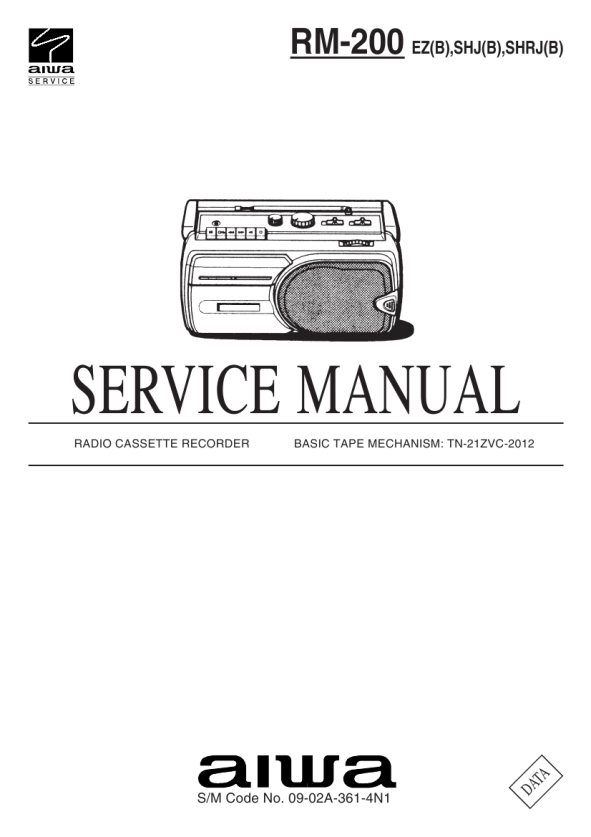

AIWA RM200
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA RM200 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 D-900 HITACHI Service Manual by GOZDE ALP;
I really like this manual and it's reliable.I found and bought easly.thank you.
 RF-9000 PANASONIC Service Manual by Olga Olga;
Thank you very much. the Instruction corresponds to my expectations. Sent it in time. I don't regret that paid money.
 RS-1500US VOLUME 2 TECHNICS Service Manual by Jozsef Hader;
Good quality. Quick service. I recommend to everyone.
 ES5030R SHERWOOD Service Manual by Dinka Hristova;
Very good quality scan of the document. I am very pleased with what I got.
 SQ10 PHILIPS Service Manual by Hammad Khan;
PDF Contains Technical Data, Mechanical data, Detailed Circuit diagram with components value, PCB layout. Actual PCBs Print. Component List, Spare parts code list and Input output detail. It cover LBB1211, LBB1212, LBB1213, LBB1216, LBB1217. It is the actual Service Manual for SQ10

Text excerpt from page 12 (click to view)
ADJUSTMENT -1/1

SW1 COIL MW COIL

MAIN C.B(Top View)
L105 L107

5 7 9 8 6
T105

TC102 TC104 VC4 VC2 L102 VC3 VC1 L103 10 IC101 T104 T103 T102 TC103 T101 TC101

3 4 2 test point

1

1. AM IF Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: T104 T104 ........................ 455kHz (SHJ,SHRJ Models) 465kHz (EZ Model) 2. MW Frequency Range Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: T101, TC101 T101 ......................... 517kHz (SHJ,SHRJ Models) 515kHz (EZ Model) TC101 ....................... 1650kHz (SHJ,SHRJ Models) 1635kHz (EZ Model) 3. MW Tracking Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: L107, TC104 L107 ........................ 600kHz TC104 ...................... 1400kHz 4. SW1 Frequency Range Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: T102, TC103 T102 ......................... 2.1MHz TC103 ...................... 7.3MHz 5. SW1 Tracking Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: L105, TC102 L105 ........................ 2.3MHz TC102 ....................... 7MHz

6. SW2 Frequency Range Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: T103, VC3 T103 ........................ 6.8MHz VC3 ......................... 22.5MHz 7. SW2 Tracking Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: T105, VC4 T105 ........................ 7MHz VC4 ......................... 22MHz 8. FM Frequency Range Adjustment Test point: IC101 (TA2132) 10PIN Adjustment location: L103, VC1 L103 ....................... 87MHz (SHJ,SHRJ Models) 87.4MHz (EZ Model) VC1 ....................... 109MHz (SHJ,SHRJ Models) 108.3MHz (EZ Model) 9. FM Tracking Adjustment Test point: IC101 (TA2132)PIN Adjustment Location: L102,VC2 L102 ......................... 88MHz VC2 ........................ .. 108MHz

-12-
