Abgleichvorschriften / Adjustment Procedures

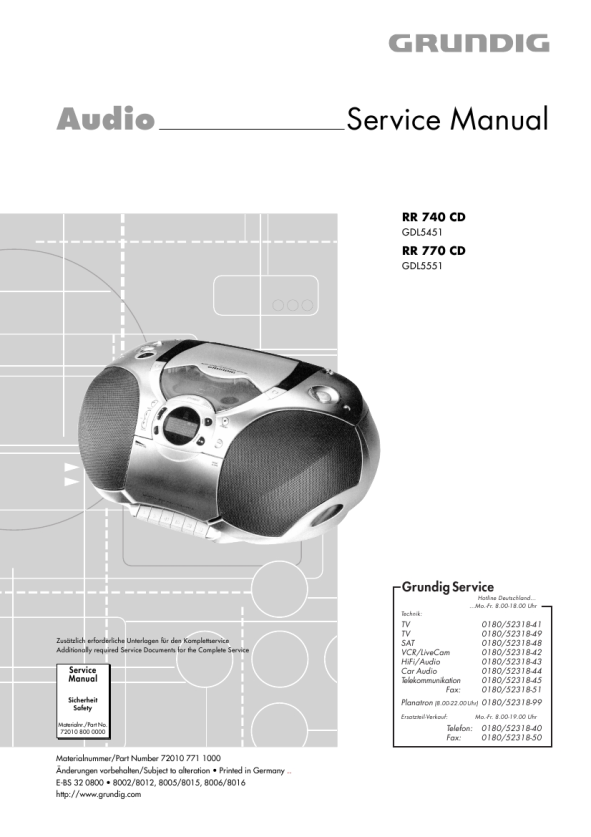

RR 740 CD / RR 770 CD
3. Tuner
Messgeräte: Messsender, Wobbelsender, Oszilloskop, Digitalvoltmeter. Funktionsschalter: Radio Abgleich 1. AM-ZF Vorbereitung Wobbelsender 450kHz über Rahmenantenne in L503 (Ferritantenne) einkoppeln. Oszilloskop an Messpunkt TP 5 (IC502 Pin 18). Bandschalter: MW MW, 1620kHz Digitalvoltmeter an Messpunkt Bandschalter: MW Abgleichvorgang Mit T502 auf Maximum einstellen.
2. MW-Oszillator
Mit L505 bei 1620kHz auf 8,2V ± 0,1V einstellen.
TP 6
(CN501 Pin 9).
3. MW-Vorkreis
MW 612kHz, MW 1404kHz Messsendersignal über Rahmenantenne in L503 (Ferritantenne) (fmod = 1kHz, m = 30%, Ua nur so gro�, dass das Signal gerade erkennbar ist). Oszilloskop an Kopfhörerbuchse. Bandschalter: MW LW, 281kHz Digitalvoltmeter an Messpunkt Bandschalter: LW
Bei 612kHz mit L503 (MW-Antennenspule) auf Maximum einstellen (verschieben). Bei 1404kHz mit TC502 auf Maximum einstellen. Abgleich wechselseitig wiederholen.
4. LW-Oszillator
Mit L506 bei 281kHz auf 7,9V ± 0,1V einstellen.
TP 6
(CN501 Pin 9).
5. LW-Vorkreis
LW 164kHz, LW 272kHz Messsendersignal über Rahmenantenne in L504 (Ferritantenne) einkoppeln (fmod = 1kHz, m = 30%, Ua nur so gro�, dass das Signal gerade erkennbar ist). Oszilloskop an Kopfhörerbuchse. Bandschalter: LW FM 10,7MHz Wobbelsendersignal über 10nF an Messpunkt (Masse). Oszilloskop an Messpunkt Bandschalter: FM
TP 2 TP 4
Bei 164kHz mit L504 (LW-Antennenspule) auf Maximum einstellen (verschieben). Bei 272kHz mit TC503 auf Maximum einstellen. Abgleich wechselseitig wiederholen.
6. FM-ZF
TP 1
/
Mit T501 auf Maximum und Symmetrie einstellen. Mit T503 auf Symmetrie einstellen. Abgleich wechselseitig wiederholen.
S-Kurve S Curve
(IC502 Pin 19).
7. FM-Oszillator
FM, 108MHz Digitalvoltmeter an Messpunkt Bandschalter: FM
TP 7
(CN501 Pin 8).
Mit L502 bei 108MHz auf 7,9V ± 0,1V einstellen (verbiegen).
8. FM-Vorkreis
FM 90MHz, FM 106MHz Messsendersignal über 10nF an Messpunkt TP 1 / TP 2 (Masse), (fmod = 1kHz, �f = 22,5kHz, Ua nur so gro�, da� das Signal gerade erkennbar ist). Oszilloskop an Kopfhörerbuchse. Bandschalter: FM
Bei 90MHz mit L501 auf Maximum einstellen (verbiegen). Bei 106MHz mit TC501 auf Maximum einstellen. Abgleich wechselseitig wiederholen.
62
Tuner-Platte
62 62 !
62 #
62 $ 62 %
' &
62 "
2-2
GRUNDIG Service
|
|
|
> |
|
