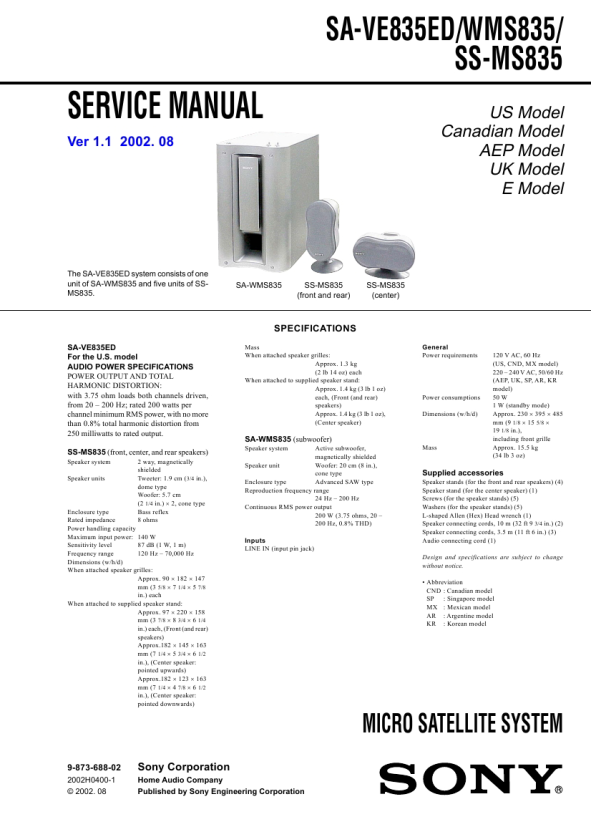

SA-VE835ED/WMS835/ SS-MS835
SERVICE MANUAL
Ver 1.1 2002. 08
US Model Canadian Model AEP Model UK Model E Model
The SA-VE835ED system consists of one unit of SA-WMS835 and five units of SSMS835.
SA-WMS835
SS-MS835 (front and rear)
SS-MS835 (center)
SPECIFICATIONS
SA-VE835ED For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 3.75 ohm loads both channels driven, from 20 � 200 Hz; rated 200 watts per channel minimum RMS power, with no more than 0.8% total harmonic distortion from 250 milliwatts to rated output. SS-MS835 (front, center, and rear speakers)
Speaker system Speaker units 2 way, magnetically shielded Tweeter: 1.9 cm (3/4 in.), dome type Woofer: 5.7 cm (2 1/4 in.) � 2, cone type Bass reflex 8 ohms Mass When attached speaker grilles: Approx. 1.3 kg (2 lb 14 oz) each When attached to supplied speaker stand: Approx. 1.4 kg (3 lb 1 oz) each, (Front (and rear) speakers) Approx. 1.4 kg (3 lb 1 oz), (Center speaker) General Power requirements 120 V AC, 60 Hz (US, CND, MX model) 220 � 240 V AC, 50/60 Hz (AEP, UK, SP, AR, KR model) 50 W 1 W (standby mode) Approx. 230 � 395 � 485 mm (9 1/8 � 15 5/8 � 19 1/8 in.), including front grille Approx. 15.5 kg (34 lb 3 oz)
Power consumptions Dimensions (w/h/d)
SA-WMS835 (subwoofer)
Active subwoofer, magnetically shielded Speaker unit Woofer: 20 cm (8 in.), cone type Enclosure type Advanced SAW type Reproduction frequency range 24 Hz � 200 Hz Continuous RMS power output 200 W (3.75 ohms, 20 � 200 Hz, 0.8% THD) Inputs LINE IN (input pin jack) Speaker system Mass
Supplied accessories
Speaker stands (for the front and rear speakers) (4) Speaker stand (for the center speaker) (1) Screws (for the speaker stands) (5) Washers (for the speaker stands) (5) L-shaped Allen (Hex) Head wrench (1) Speaker connecting cords, 10 m (32 ft 9 3/4 in.) (2) Speaker connecting cords, 3.5 m (11 ft 6 in.) (3) Audio connecting cord (1) Design and specifications are subject to change without notice. � Abbreviation CND : Canadian model SP : Singapore model MX : Mexican model AR : Argentine model KR : Korean model
Enclosure type Rated impedance Power handling capacity Maximum input power: 140 W Sensitivity level 87 dB (1 W, 1 m) Frequency range 120 Hz � 70,000 Hz Dimensions (w/h/d) When attached speaker grilles: Approx. 90 � 182 � 147 mm (3 5/8 � 7 1/4 � 5 7/8 in.) each When attached to supplied speaker stand: Approx. 97 � 220 � 158 mm (3 7/8 � 8 3/4 � 6 1/4 in.) each, (Front (and rear) speakers) Approx.182 � 145 � 163 mm (7 1/4 � 5 3/4 � 6 1/2 in.), (Center speaker: pointed upwards) Approx.182 � 123 � 163 mm (7 1/4 � 4 7/8 � 6 1/2 in.), (Center speaker: pointed downwards)
MICRO SATELLITE SYSTEM
9-873-688-02
2002H0400-1 © 2002. 08
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
1
|
|
|
> |
|
