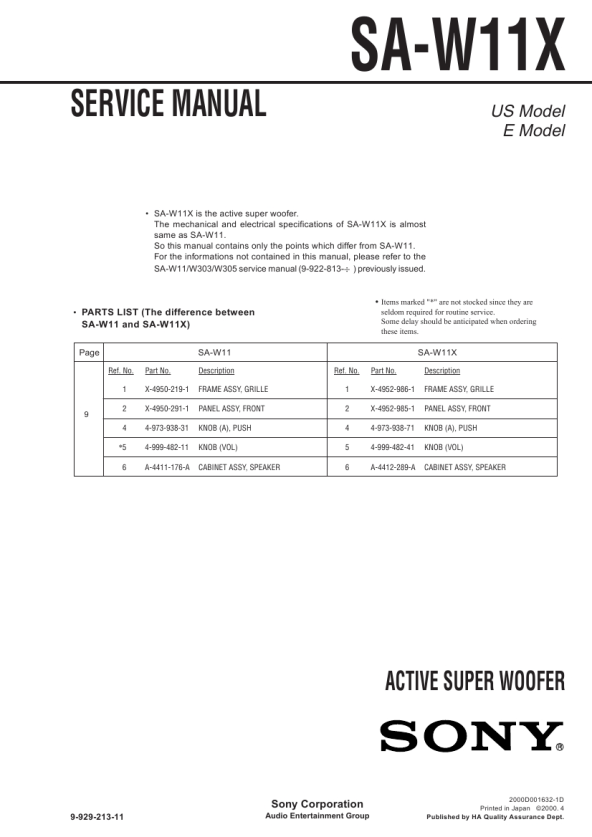

SA-W11X
SERVICE MANUAL
� SA-W11X is the active super woofer. The mechanical and electrical specifications of SA-W11X is almost same as SA-W11. So this manual contains only the points which differ from SA-W11. For the informations not contained in this manual, please refer to the SA-W11/W303/W305 service manual (9-922-813-�) previously issued.
US Model E Model
� PARTS LIST (The difference between
SA-W11 and SA-W11X)
Page
Ref. No. 1 9 2 4 *5 6 Part No. X-4950-219-1 X-4950-291-1 4-973-938-31 4-999-482-11 A-4411-176-A
� Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
SA-W11
Description FRAME ASSY, GRILLE PANEL ASSY, FRONT KNOB (A), PUSH KNOB (VOL) CABINET ASSY, SPEAKER Ref. No. 1 2 4 5 6 Part No. X-4952-986-1 X-4952-985-1 4-973-938-71 4-999-482-41 A-4412-289-A
SA-W11X
Description FRAME ASSY, GRILLE PANEL ASSY, FRONT KNOB (A), PUSH KNOB (VOL) CABINET ASSY, SPEAKER
ACTIVE SUPER WOOFER
Sony Corporation
9-929-213-11
Audio Entertainment Group
2000D001632-1D Printed in Japan ©2000. 4 Published by HA Quality Assurance Dept.
|
|
|
> |
|
