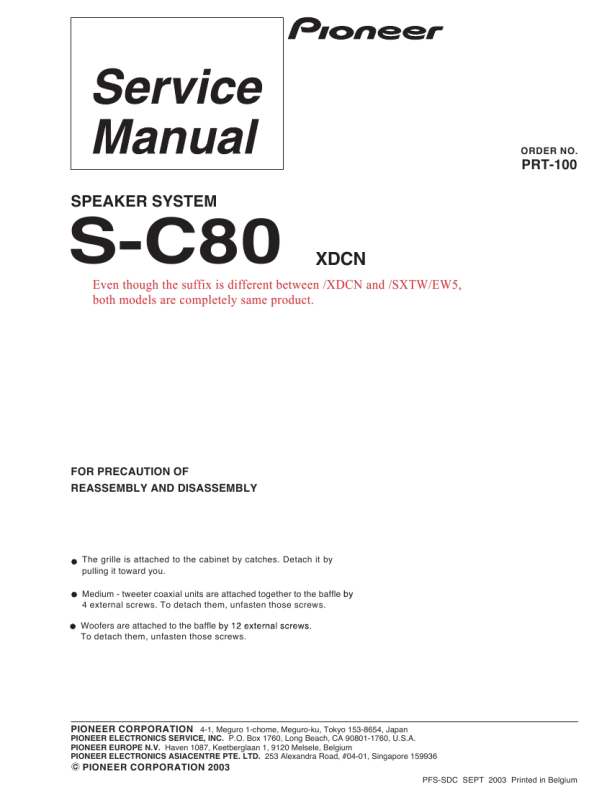

ORDER NO.
PRT-100
S-C80
SPEAKER SYSTEM
Even though the suffix is different between /XDCN and /SXTW/EW5, both models are completely same product.
XDCN
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach it by pulling it toward you. Medium - tweeter coaxial units are attached together to the baffle 4 external screws. To detach them, unfasten those screws. Woofers are attached to the baffle To detach them, unfasten those screws.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
PFS-SDC SEPT 2003 Printed in Belgium
|
