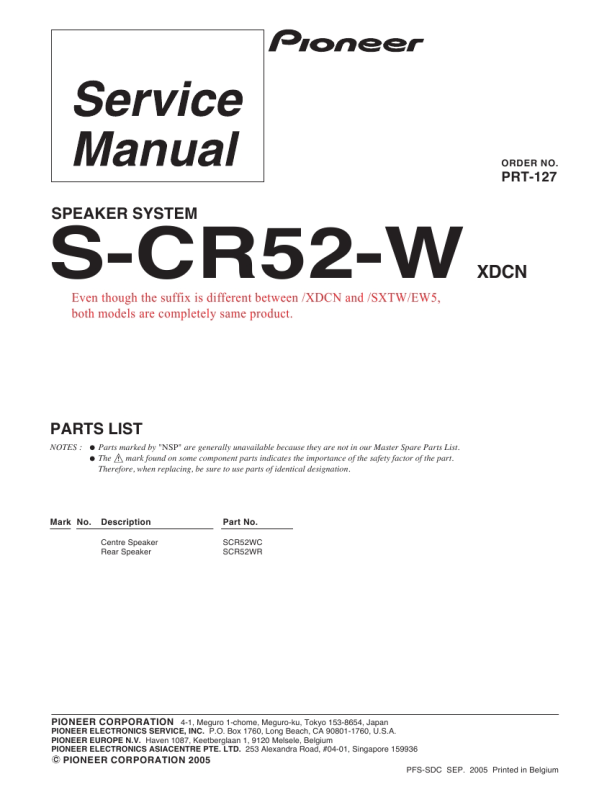

PRT-127
ORDER NO.
S-CR52-W
SPEAKER SYSTEM
Even though the suffix is different between /XDCN and /SXTW/EW5, both models are completely same product.
NOTES :
XDCN
PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Mark No.
Description
Centre Speaker Rear Speaker
Part No.
SCR52WC SCR52WR
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
PFS-SDC SEP. 2005 Printed in Belgium
|
