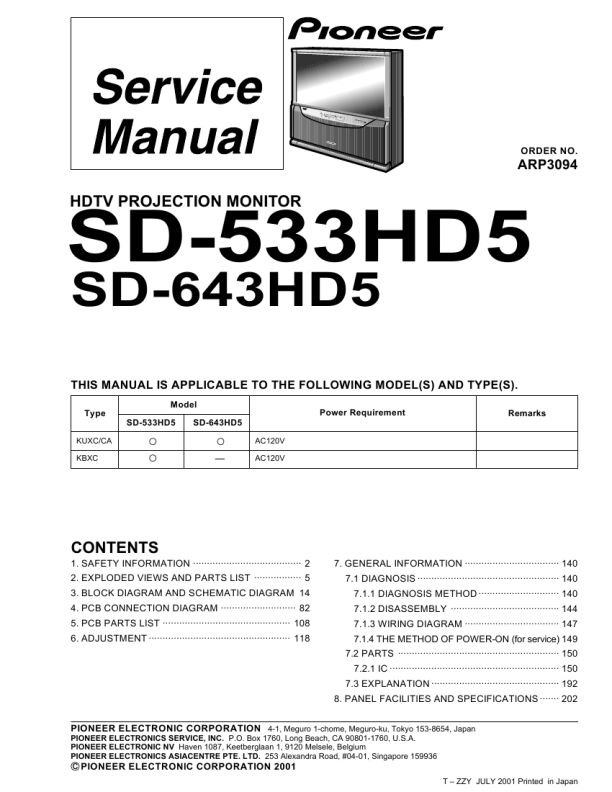

SD-533HD5, SD-643HD5
7.1.4 The method of power-on (for service)
SHORT Assy
When removes the Front Grille, remove the connectors from POWER SW Assy, FRONT INPUT Assy and FRONT LED Assy and remove the Grille. This set is not turned on the power in the state that removed the connectors. At this time, connect a connector that connected to the POWER SW Assy to the SHORT Assy, and can turn the MAIN POWER SW to ON. Be careful there is a case to be turned on the power in the state that front side of this set opens. In addition, the front input and front key do not work because each Assy does not connect it, but the remote control unit works in the same way normally. There is a Factory Key on the FRONT LED Assy. When enter the Factory mode, transfer a code with the remote control unit or connect the FRONT LED Assy. (Turn the Main Power SW to OFF when connects it.)
The connector of POWER SW Assy The connector of FRONT INPUT Assy and FRONT LED Assys
Factory Key
149
|
|
|
> |
|
