TIMING CHART
VIDEO
E D B A
SYNC
C
OPERATING INSTRUCTIONS
FRONT / REAR VIEW
1. (Power) switch and indicator To turn the display on or off, press the (power) switch upward. The power indicator lights up in green when the display is turned on, and lights up in orange when the monitor is in power saving mode.
2. MENU button This button displays or closes the main menu. 3. buttons These buttons function as the buttons when selecting the menu items and making adjustments.
4. OK button This button selects the item or executes the settings in the menu.
INPUT
5.
button This button is used to change the brightness of the screen.
6. AC IN connector Connect the power cord (supplied). 7. DVI-D input connector (digital RGB) This connector inputs digital RGB video signals that comply with DVI Rev.1.0. 8. HD15 (RGB) input connector (analog RGB) This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals. DDC (Display Data Channel) is a standard of VESA. 9. Input Select
�7�
SDM-HS74/HS74P (E)

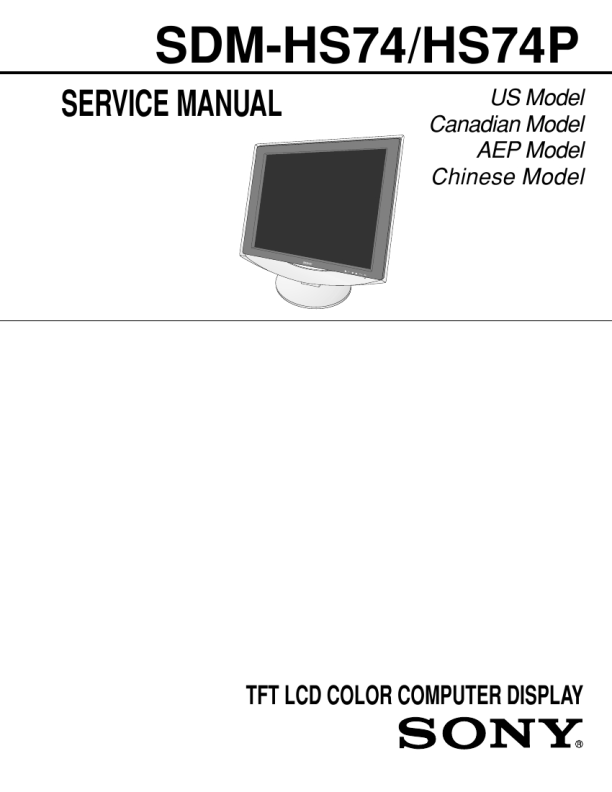

 $4.99 SDMHS74 SONY
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
|
