PARTS LIST
NOTES:
A
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
For Packing
Mark No. Description
Speaker Wire (White) Speaker Wire (Red) Speaker Wire (Green) Speaker Wire (Purple) Speaker Wire (Blue) Speaker Wire (Grey) Non Skid Pads (for FS, C) Non Skid Pad (for SW) Top Protector Mid Protector Bottom Protector Protection Sheet Packing Case
CS ASSY (F/S)
Part No.
SDS6007 SDS6008 SDS6009 SDS6010 SDS6011 SDS6012 SEP1240 SEP6001 SHA6014 SHA6015 SHA6016 SHC1787 SHG6056
Mark No.
Description
Speaker Fung Nut M5 Cable Packing (for Cabinet) Packing (for Speaker) In-Put Terminal Grille Screw
Part No.
A142CU54-52D SBN6002 SDD6004 SEC1574 SEC6024 SKX1062 SMG6009 BPZ40P100FZB
B
CS ASSY (SW)
Mark No. Description
Speaker Cable Packing Input Terminal Grille Screw (for Speaker) Screw (for Cosmetic Duct)
Part No.
P14LR83-51D SDD1313 SEC1627 SKX1060 SMG6010 BYC40P200FZB PPZ40P100FNC
CS ASSY (C)
Mark No.
C
Description
Speaker Cable Packing In-Put Terminal Grille Screw (for Speaker) Screw (for Grille)
Part No.
A142CU54-52D SDD6004 SEC1574 SKX1062 SMG6008 BPZ40P060FZB BPZ40P100FZB
D
SCHEMATIC DIAGRAM
Cable(SDD1313)
Woofer
Red
INPUT
E Black
Cable (SDD6004)
Woofer
Red
INPUT
White
F
2
1 2

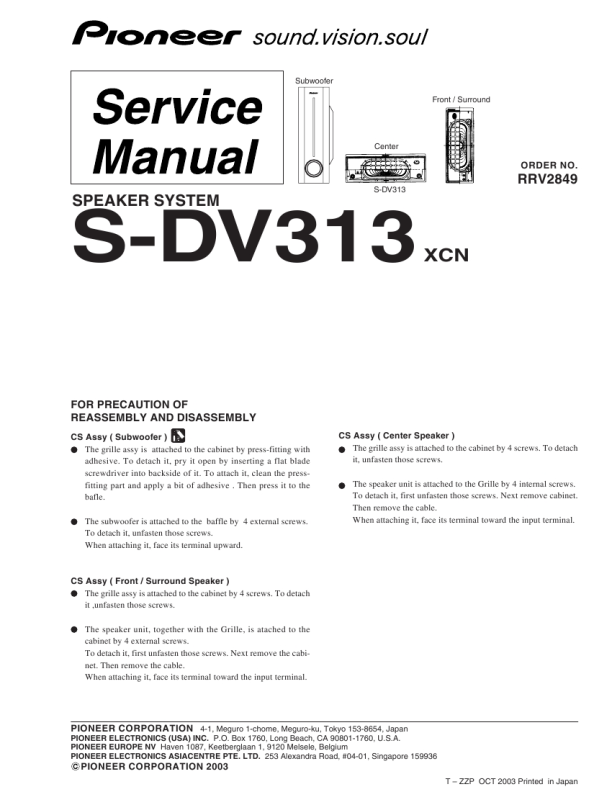

S-DV313
3 4
|
|
|
> |
|
