Surround Front Sub Woofer
Center

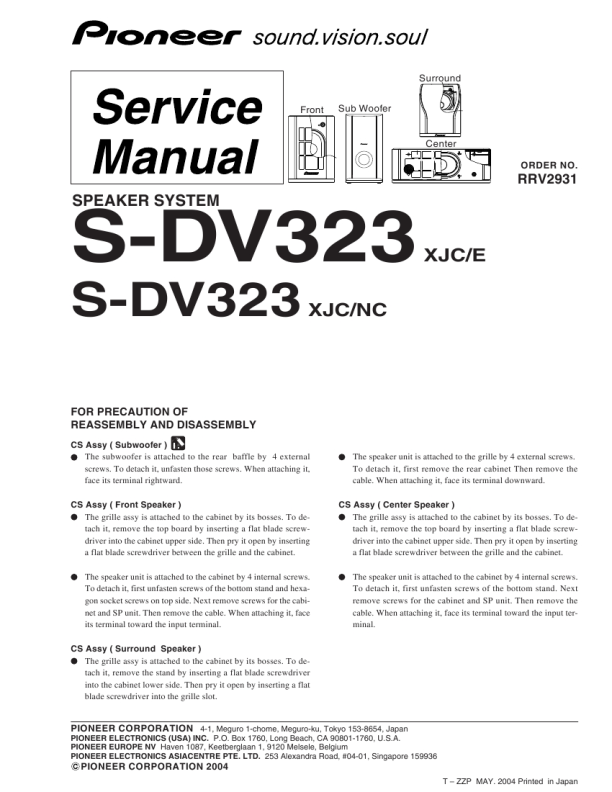

ORDER NO.
RRV2931
SPEAKER SYSTEM
S-DV323
S-DV323
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer ) The subwoofer is attached to the rear baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. CS Assy ( Front Speaker ) The grille assy is attached to the cabinet by its bosses. To detach it, remove the top board by inserting a flat blade screwdriver into the cabinet upper side. Then pry it open by inserting a flat blade screwdriver between the grille and the cabinet. The speaker unit is attached to the cabinet by 4 internal screws. To detach it, first unfasten screws of the bottom stand and hexagon socket screws on top side. Next remove screws for the cabinet and SP unit. Then remove the cable. When attaching it, face its terminal toward the input terminal. CS Assy ( Surround Speaker ) The grille assy is attached to the cabinet by its bosses. To detach it, remove the stand by inserting a flat blade screwdriver into the cabinet lower side. Then pry it open by inserting a flat blade screwdriver into the grille slot.
XJC/E
XJC/NC
The speaker unit is attached to the grille by 4 external screws. To detach it, first remove the rear cabinet Then remove the cable. When attaching it, face its terminal downward. CS Assy ( Center Speaker ) The grille assy is attached to the cabinet by its bosses. To detach it, remove the top board by inserting a flat blade screwdriver into the cabinet upper side. Then pry it open by inserting a flat blade screwdriver between the grille and the cabinet. The speaker unit is attached to the cabinet by 4 internal screws. To detach it, first unfasten screws of the bottom stand. Next remove screws for the cabinet and SP unit. Then remove the cable. When attaching it, face its terminal toward the input terminal.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2004
T � ZZP MAY. 2004 Printed in Japan
|
|
|
> |
|
