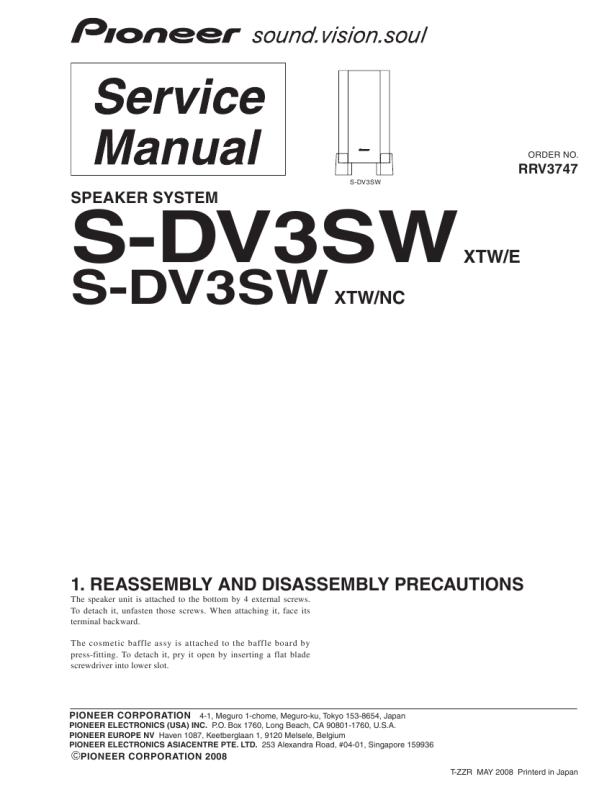

RRV3747
S-DV3SW
ORDER NO.
S-DV3SW
S-DV3SW
XTW/NC
SPEAKER SYSTEM
XTW/E
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The speaker unit is attached to the bottom by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal backward. The cosmetic baffle assy is attached to the baffle board by press-fitting. To detach it, pry it open by inserting a flat blade screwdriver into lower slot.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
T-ZZR MAY 2008 Printerd in Japan
|
|
|
> |
|
