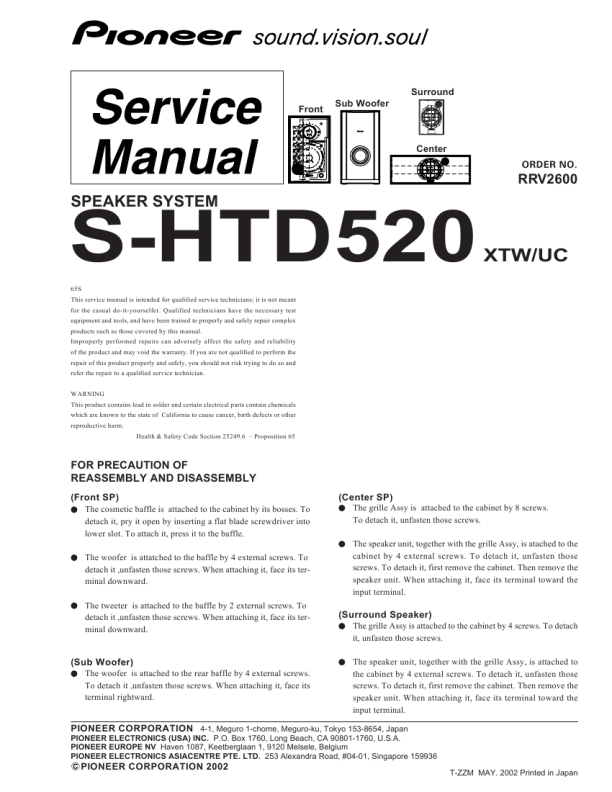

Surround Front Sub Woofer
Center
ORDER NO.
RRV2600
S-HTD520
65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 � Proposition 65
SPEAKER SYSTEM
XTW/UC
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
(Front SP)
The cosmetic baffle is attached to the cabinet by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. To attach it, press it to the baffle. The speaker unit, together with the grille Assy, is atached to the The woofer is attatched to the baffle by 4 external screws. To detach it ,unfasten those screws. When attaching it, face its terminal downward. The tweeter is attached to the baffle by 2 external screws. To detach it ,unfasten those screws. When attaching it, face its terminal downward. cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the speaker unit. When attaching it, face its terminal toward the input terminal.
(Center SP)
The grille Assy is attached to the cabinet by 8 screws. To detach it, unfasten those screws.
(Surround Speaker)
The grille Assy is attached to the cabinet by 4 screws. To detach it, unfasten those screws. The speaker unit, together with the grille Assy, is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the speaker unit. When attaching it, face its terminal toward the input terminal.
(Sub Woofer)
The woofer is attached to the rear baffle by 4 external screws. To detach it ,unfasten those screws. When attaching it, face its terminal rightward.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2002
T-ZZM MAY. 2002 Printed in Japan
|
|
|
> |
|
