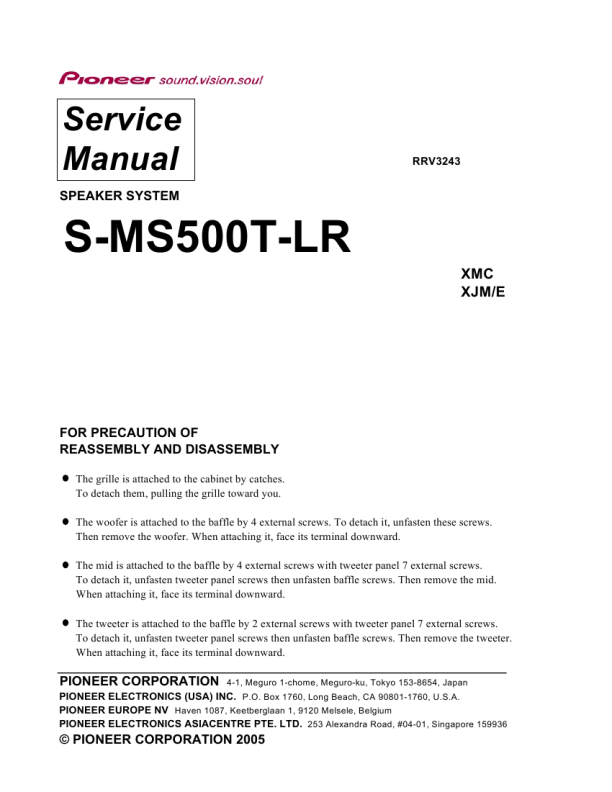

Text excerpt from page 1 (click to view)
Service Manual
SPEAKER SYSTEM

RRV3243

S-MS500T-LR
XMC XJM/E

FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. To detach them, pulling the grille toward you. The woofer is attached to the baffle by 4 external screws. To detach it, unfasten these screws. Then remove the woofer. When attaching it, face its terminal downward. The mid is attached to the baffle by 4 external screws with tweeter panel 7 external screws. To detach it, unfasten tweeter panel screws then unfasten baffle screws. Then remove the mid. When attaching it, face its terminal downward. The tweeter is attached to the baffle by 2 external screws with tweeter panel 7 external screws. To detach it, unfasten tweeter panel screws then unfasten baffle screws. Then remove the tweeter. When attaching it, face its terminal downward.

PIONEER CORPORATION

4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2005
