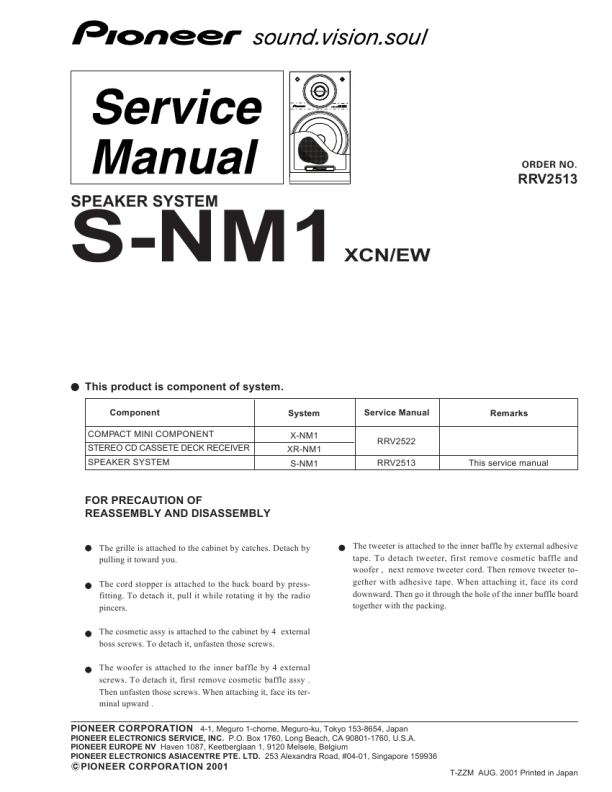

ORDER NO.
RRV2513
S-NM1
This product is component of system.
Component COMPACT MINI COMPONENT STEREO CD CASSETE DECK RECEIVER SPEAKER SYSTEM System X-NM1 XR-NM1 S-NM1
SPEAKER SYSTEM
XCN/EW
Service Manual RRV2522 RRV2513
Remarks
This service manual
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach by pulling it toward you. The cord stopper is attached to the back board by pressfitting. To detach it, pull it while rotating it by the radio pincers. The cosmetic assy is attached to the cabinet by 4 external boss screws. To detach it, unfasten those screws. The woofer is attached to the inner baffle by 4 external screws. To detach it, first remove cosmetic baffle assy . Then unfasten those screws. When attaching it, face its terminal upward . The tweeter is attached to the inner baffle by external adhesive tape. To detach tweeter, first remove cosmetic baffle and woofer , next remove tweeter cord. Then remove tweeter together with adhesive tape. When attaching it, face its cord downward. Then go it through the hole of the inner buffle board together with the packing.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
T-ZZM AUG. 2001 Printed in Japan
|
|
|
> |
|
