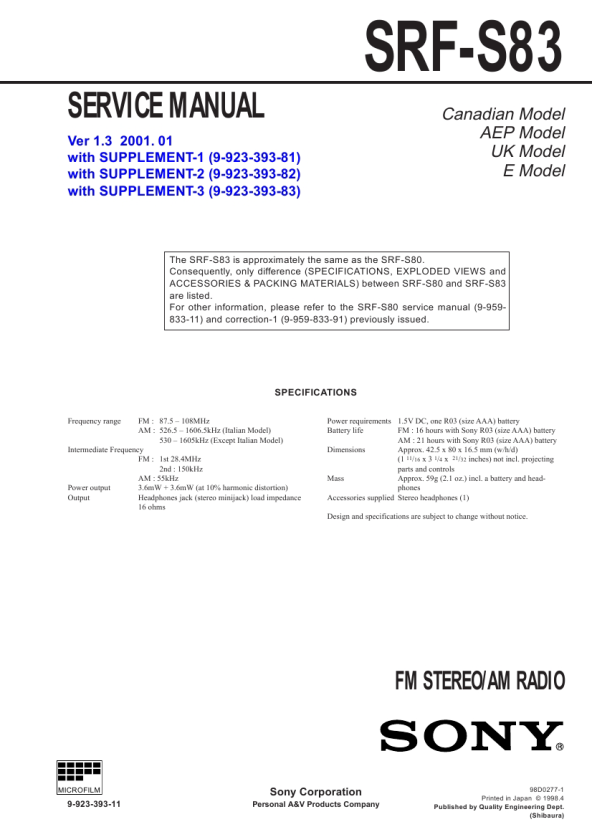

SRF-S83
SERVICE MANUAL
Ver 1.3 2001. 01 with SUPPLEMENT-1 (9-923-393-81) with SUPPLEMENT-2 (9-923-393-82) with SUPPLEMENT-3 (9-923-393-83)
Canadian Model AEP Model UK Model E Model
The SRF-S83 is approximately the same as the SRF-S80. Consequently, only difference (SPECIFICATIONS, EXPLODED VIEWS and ACCESSORIES & PACKING MATERIALS) between SRF-S80 and SRF-S83 are listed. For other information, please refer to the SRF-S80 service manual (9-959833-11) and correction-1 (9-959-833-91) previously issued.
SPECIFICATIONS
Frequency range FM : 87.5 � 108MHz AM : 526.5 � 1606.5kHz (Italian Model) 530 � 1605kHz (Except Italian Model) Intermediate Frequency FM : 1st 28.4MHz 2nd : 150kHz AM : 55kHz Power output 3.6mW + 3.6mW (at 10% harmonic distortion) Output Headphones jack (stereo minijack) load impedance 16 ohms Power requirements 1.5V DC, one R03 (size AAA) battery Battery life FM : 16 hours with Sony R03 (size AAA) battery AM : 21 hours with Sony R03 (size AAA) battery Dimensions Approx. 42.5 x 80 x 16.5 mm (w/h/d) (1 11/16 x 3 1/4 x 21/32 inches) not incl. projecting parts and controls Mass Approx. 59g (2.1 oz.) incl. a battery and headphones Accessories supplied Stereo headphones (1) Design and specifications are subject to change without notice.
FM STEREO/AM RADIO
MICROFILM
Sony Corporation
Personal A&V Products Company
9-923-393-11
98D0277-1 Printed in Japan © 1998.4 Published by Quality Engineering Dept. (Shibaura)
|
|
|
> |
|
