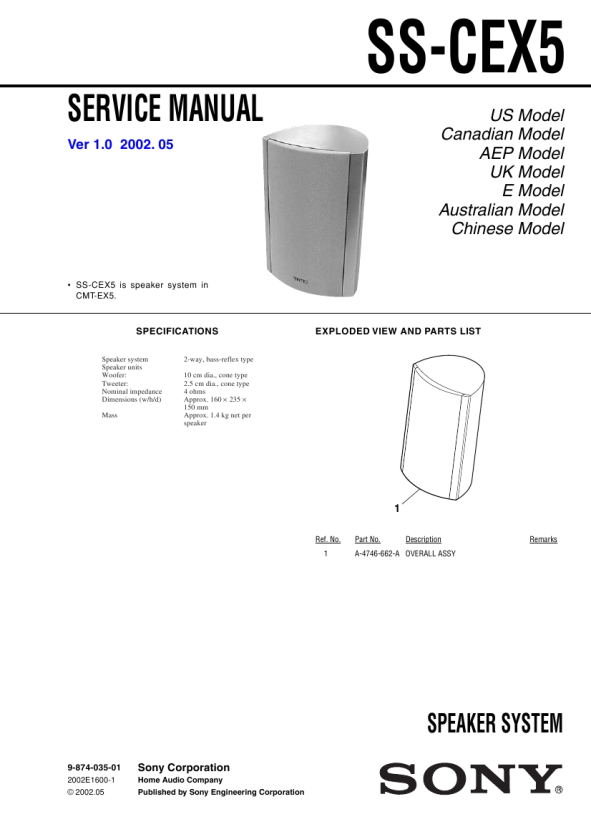

SS-CEX5
SERVICE MANUAL
Ver 1.0 2002. 05
US Model Canadian Model AEP Model UK Model E Model Australian Model Chinese Model
� SS-CEX5 is speaker system in CMT-EX5.
SPECIFICATIONS
Speaker system Speaker units Woofer: Tweeter: Nominal impedance Dimensions (w/h/d) Mass 2-way, bass-reflex type 10 cm dia., cone type 2.5 cm dia., cone type 4 ohms Approx. 160 � 235 � 150 mm Approx. 1.4 kg net per speaker
EXPLODED VIEW AND PARTS LIST
1
Ref. No. 1 Part No. Description Remarks
A-4746-662-A OVERALL ASSY
SPEAKER SYSTEM
9-874-035-01
2002E1600-1 © 2002.05
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
