Front
Surround
Center
RRV3617
S-ST330
ORDER NO.
SPEAKER SYSTEM
S-ST330
XJC/E

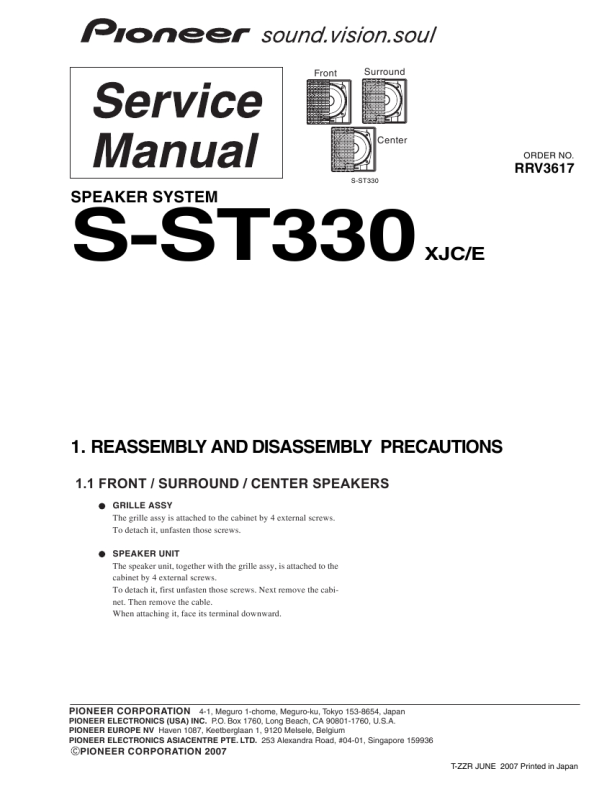

1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 FRONT / SURROUND / CENTER SPEAKERS
GRILLE ASSY The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. SPEAKER UNIT The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal downward.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
T-ZZR JUNE 2007 Printed in Japan
|
|
|
> |
|
