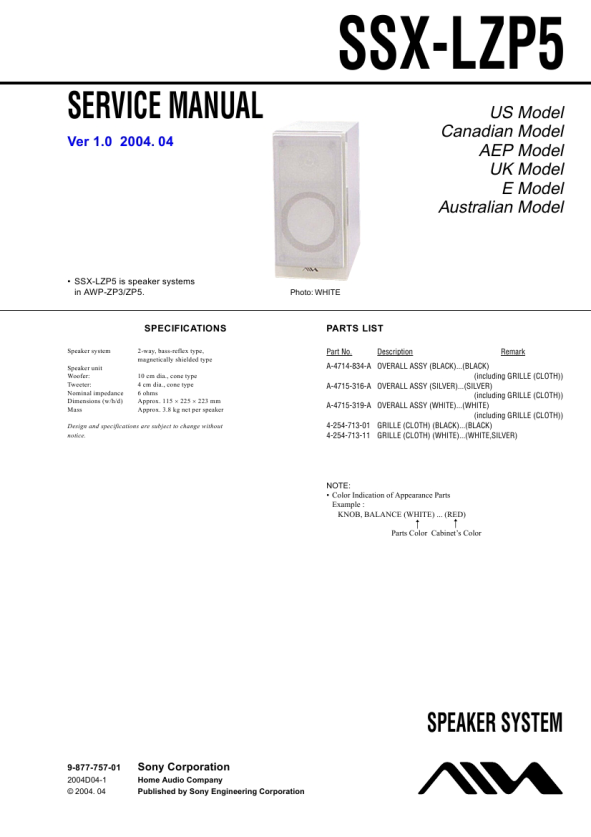

SSX-LZP5
SERVICE MANUAL
Ver 1.0 2004. 04
US Model Canadian Model AEP Model UK Model E Model Australian Model
� SSX-LZP5 is speaker systems in AWP-ZP3/ZP5.
Photo: WHITE
SPECIFICATIONS
Speaker system Speaker unit Woofer: Tweeter: Nominal impedance Dimensions (w/h/d) Mass 2-way, bass-reflex type, magnetically shielded type 10 cm dia., cone type 4 cm dia., cone type 6 ohms Approx. 115 � 225 � 223 mm Approx. 3.8 kg net per speaker
PARTS LIST
Part No. Description Remark
A-4714-834-A OVERALL ASSY (BLACK)...(BLACK) (including GRILLE (CLOTH)) A-4715-316-A OVERALL ASSY (SILVER)...(SILVER) (including GRILLE (CLOTH)) A-4715-319-A OVERALL ASSY (WHITE)...(WHITE) (including GRILLE (CLOTH)) 4-254-713-01 GRILLE (CLOTH) (BLACK)...(BLACK) 4-254-713-11 GRILLE (CLOTH) (WHITE)...(WHITE,SILVER)
Design and specifications are subject to change without notice.
NOTE: � Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) R R Parts Color Cabinet�s Color
SPEAKER SYSTEM
9-877-757-01
2004D04-1 © 2004. 04
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
1
|
|
|
> |
|
