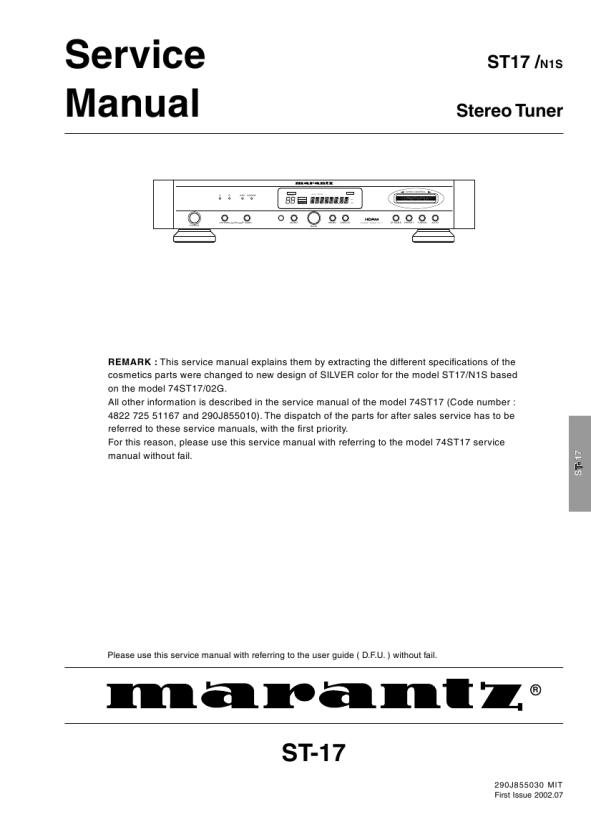

Service Manual
A B WIDE NARROW
MEMORY PRESET MUTING STEREO
AUTO TUNING
ST17 /N1S Stereo Tuner
TUNED
kHz MHz
GYRO CONTROL
MONO
ANTENNA POWER
FM
IF BAND
MONO BAND
MEMO
DISPLAY
STEREO TUNER ST-17
ST NAME
PRESET
TUNING
AUTO
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
R
ST-17
Printed on 100% Recycled Paper
Printed in Japan
290J855030 MIT First Issue 2002.07
ST-17
REMARK : This service manual explains them by extracting the different speci�cations of the cosmetics parts were changed to new design of SILVER color for the model ST17/N1S based on the model 74ST17/02G. All other information is described in the service manual of the model 74ST17 (Code number : 4822 725 51167 and 290J855010). The dispatch of the parts for after sales service has to be referred to these service manuals, with the �rst priority. For this reason, please use this service manual with referring to the model 74ST17 service manual without fail.
|
|
|
> |
|
