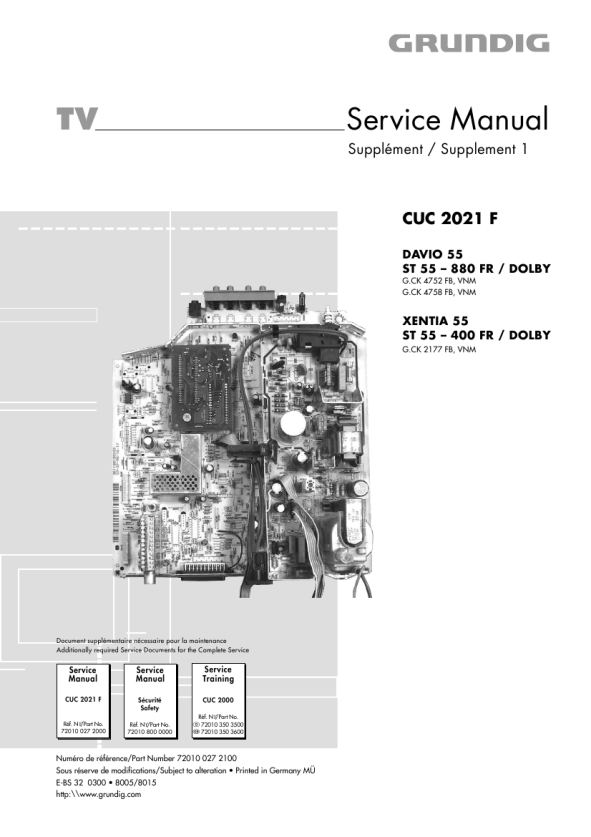

Partie générale / General Section
CUC 2021 F
Caractéristiques techniques / Technical Data
DAVIO 55 ST 55 � 880 FR / DOLBY CUC 2021 F (VNM) Tube image / Picture Tube Taille de I'image Visible picture Taille du tube Screen diagonal Angle de déviation Deflection angle Fréquence image Vertical frequency Electronique / Electronic Nombre de programmes mémorisables Programme positions Tuner 99 TV + 2 AV 99 TV + 2 AV 51cm 55cm (21") FST, Black Line D, small neck 90° 50Hz 51cm 55cm (21") FST, Black Line D, small neck 90° 50Hz XENTIA 55 ST 55 � 400 FR / DOLBY CUC 2021 F (VNM)
PLL fréquence synthesizer tuning UHF/VHF PLL frequency synthesizer tuning UHF/VHF PAL / SECAM / NTSC 4,43MHz / B/G, L/L', I (Mono) 8 pages de text TOP/FLOF, VPS, 8 pages TOP/FLOF-text, VPS, Stereo 2 X 8W PAL / SECAM / NTSC 4,43MHz / B/G, L/L', I (Mono) 8 pages de text TOP/FLOF, VPS, 8 pages TOP/FLOF-text, VPS, Stereo 2 X 8W
Normes de réception TV TV-Standards Télétexte Teletext Puissance musicale Music power Connexions en façade / Connections Front Casque Headphones
Fiche jack stéréo 3,5mm, volume réglable, sélection voix droite / voix gauche en double-son Stereo 3.5mm jack, adjustable volume, Individual channel selection with dual-sound broadcasts 1 x Cinch en position AV2 1 x Cinch in AV2 position 2 x Cinch 1 x Cinch en position AV2 1 x Cinch in AV2 position 2 x Cinch
Video IN Audio IN Connexions au dos / Connections Rear Panel Euro AV 1 (noire/black) Euro AV 2 (noire/black) Alimentation / Mains Stage Tension secteur (Plage de variation) Mains voltage (variable) Fréquence Mains frequency Consommation normale Power consumption Consommation en veille Standby consumption
Entrée/sortie FBAS, Entrée SBAS, Entrée RVB CCVS in-/output, SBAS input, RGB input Entrée/sortie FBAS, Entrée RVB CCVS in-/output, RGB input
165�265V 50 / 60Hz env./ ca. 65W env. / ca. 6W
165�265V 50 / 60Hz env./ ca. 60W env. / ca. 6W
4
GRUNDIG Service
|
|
|
> |
|
