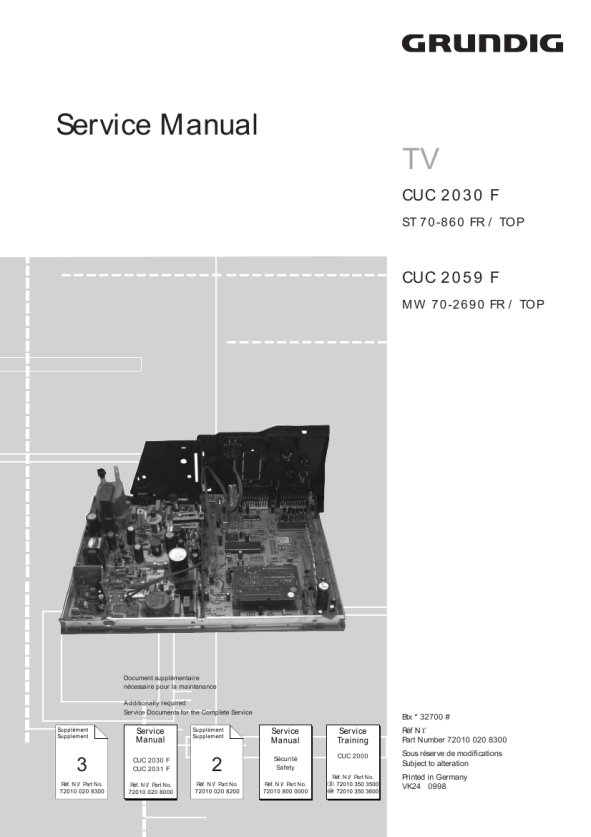

GRUNDIG Service 7
CUC 2030 2059 F Liste de pièces détachées / Spare Parts Lists
POS. NR. N°POS.
SACHNUMMER BEZEICHNUNG REFERENCE DESIGNATION
POS. NR. N°POS.
SACHNUMMER BEZEICHNUNG REFERENCE DESIGNATION
Ersatzteilliste Pièces détachées 8 / 98
POS. NR. ABB. N°POS. FIG. SACHNUMMER ANZ. REFERENCE NB BEZEICHNUNG
TV
ST 70-860 FR/TOP
SACH-NR. / N° REFERENCE.: 92175 611 7200 BESTELL-NR. / NO. COMMANDE.: G.CH 1172FB DESIGNATION AGANA-GRAU/GRIS AGANA IC 84001 T 44505 T 44510
29501 082 5900 BEDIENEINHEIT/ UNITE DE COMMANDE 83032 055 4800 TRANS BC548B AV330 -AMMO 83053 675 3000 IC TFMS5300 STEHEND/ TSOP
83032 075 5800 TRANS BC558C AV330 -AMMO
d
ST 70-860 FR/TOP AGANA-GRAU GEH-VORDERTEIL DRUCK KPL. TASTE NETZ DRUCKFEDER ABDECKUNG BUCHSEN ABDECKUNG ABDECKUNG DRUCK KPL GEH-RUECKTEIL OFB TYPENAUFKLEBER LS-BOX LINKS KPL LS-BOX RECHTS KPL SPULE ENTMAGNETISIERUNG SPULENHAKEN BILDR.A66EAK71X01/ A66EAK ANODENKAPPE M.HOCHSPANNUNGSKABEL BEDIENEINHEIT TASTSCHALTER PROGRAMM + TASTSCHALTER PROGRAMM TASTSCHALTER LAUTSTAERKE + TASTSCHALTER LAUTSTAERKE TASTEN-SATZ NETZSCHALTER 2,5A NETZSCHALTER 4A CINCH-BUCHSE 3-FACH FBAS/ KOPFHOERERBUCHSE 3,5 O.SCHALTER NETZKABEL KPL TELEPILOT TP 715 MONTAGEZUBEHOER F.BILDROHR KEIN E-TEIL
f
ST 70-860 FR/TOP GRIS AGANA BOITIER, PARTIE AVANT CPL. TOUCHE RESSORT A COMPRESSION RECOUVREMENT RECOUVREMENT ENJOLIVEUR CPL. BOITIER ARRIERE ETIQUETTE ENCEINTE, GAUCHE ENCEINTE, DROITE BOBINE DE DEMAGNETISATION FIXATION TUBE IMAGE A66EAK71X01/ A66EAK CAPOT ANODIQUE AVEC CABLE UNITE DE COMMANDE CLAVIER PROGRAMME + CLAVIER PROGRAMME CLAVIER VOLUME + CLAVIER VOLUME JEU DE TOUCHES INTERRUPTEUR SECTEUR 2,5A INTERRUPTEUR SECTEUR 4A PRISE CINCH 3 VOIES FBAS/ PRISE ECOUTEUR CABLE SECTEUR TELE COMMANDE TP 715 AUXIL. MONTAGE TUBE VOIR LISTE SEPAREE PLAQUE DU TUBE IMAGE MODE D'EMPLOI D/FR/GB INSTRUCTION DE SERVICE FR/GB INSTRUCTION DE SERVICE FR/GB 2IEME SUPPLEMENT INSTRUCTION DE SERVICE FR/GB 3IEME SUPPLEMENT CHASSIS C.I STEREO CUC 2030 FR VOIR LISTE SEPAREE
0200.000 0250.000 0251.000 0256.000 0260.000 0261.000 0300.000 0320.000 0380.000 0390.000 0700.000 0730.000 1100.000 1200.000 1300.000 1310.000 1320.000 1330.000 1340.000 1350.000 1360.000 WW. 1380.000 1390.000 2100.000 2400.000
S S S
92175 611 7200 29635 249 0100 29501 688 0200 29628 417 0100 29636 289 0100 29700 638 0100 29636 298 0100 29636 266 0100 29618 613 0400 29638 104 0100 29638 105 0100 09246 131 8500 29607 219 0100 83000 304 3500 29201 360 0200 29501 082 5900 29703 357 1100 29703 357 1100 29703 357 1100 29703 357 1100 29501 716 0100 29703 291 2200 29703 291 3200 29303 168 0500 29303 390 4200 82909 913 1600 29642 062 1100 29656 004 1500
200 29635 249 0100
8
250
29501 688 0200
S S S
S
29305 122 1600 21756 941 0200 72010 020 8000 72010 020 8200 72010 020 8300
X
BILDROHRPLATTE BEDIENUNGSANLEITUNG D/FR/GB SERVICE MANUAL FR/GB SERVICE MANUAL FR/GB 2. ERGAENZUNG SERVICE MANUAL FR/GB 3. ERGAENZUNG
29704 003 0300
X
CHASSIS-FS-STEREO CUC 2030 FR KEIN E-TEIL
X = SIEHE GESONDERTE E-LISTE WW. = WAHLWEISE
X = VOIR LISTE DE PIECES A PART WW. = VARIANTE
