Home >> SONY >> STRDA50ES Owner's Manual

 0 item(s) in your cart

SONY STRDA50ES
Owner's Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY STRDA50ES Owner's Manual

Complete owner's manual in digital format. The manual will be available for download as PDF file after You purchase it.

Owner's Manual ( sometimes referred to as User's Guide or User's Manual ) contains information on how to use Your device. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CDP-C7ESD SONY Owner's Manual by Larry Baty;
This was a hard to find manual. When I did find it , some sites wanted way too much for the file. Owner-manual .com had it for a really reasonable price. Not only that but it was sent very quickly and was a quality scanned document, unlike some others I purchased from a different site. Good job guys!! Larry
 RS-760S PANASONIC Owner's Manual by Anthony Runfalo;
Fast and courteous service. Product delivered as described. Thank you.
 AG-7500 PANASONIC Owner's Manual by Luite van der Walle;
Last week I bought a second hand Panasonic AG-7500 SVHS Hi-Fi Video Cassette Recorder. It is a professional machine with many video and audio options. I feared it would be a huge quest to find a manual. I was delighted when I found owner-manuals.com. After payment I received the file to download the next day already. The quality is great. I am very happy. Thanks!
 RS-736US PANASONIC Owner's Manual by Bruce Hauser;
The owner's manual/operating instructions that I purchased was the original factory document and it was in at least three and maybe more languages. I no longer have it because I sold the tape recorder and included the owner's manual/operating instructions and a service/repair manual that I bought on ebay for the new owner.
 SX-Q180 PIONEER Owner's Manual by Inseok Cho;
This manual is very useful. Because pioneer sx-q180 is unhandy to use without manual.

Text excerpt from page 7 (click to view)
SECTION 2 TEST MODE
FLUORESCENT INDICATOR TUBE TEST MODE
* All fluorescent segments are tested. When this test is activated, all segments turn on at the same time, then each segment turns on one after another. * Procedure: While depressing the FUNCTION MODE and the SOUND FIELD MODE buttons simultaneously, press the power [1/u] button to turn on the main power. All segments turn on at the same time, then each segment turns on one after another. When the CURSOR MODE button, B, V, v, or b is pressed, the indication advances in the following order: All segments on, Bridge 1, Bridge 2, All segments off.

SOUND FIELD CLEAR MODE
* The preset sound field is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD ON/OFF button, press the power [1/u] button to turn on the main power. The message SURR CLEAR! appears and initialization is performed.

AM CHANNEL STEP 9 kHz/10 kHz SELECTION MODE
* Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. * Procedure: Set the FUNCTION to AM. Turn off the main power. While depressing the TUNING+ button or the PRESET TUNING + button, press the power [1/u] button to turn on the main power. Either the message AM 9kHz STEP or AM 10kHz STEP appears. Select the desired step.

All segments on

Bridge 1

Bridge 2 All segments off

DSP TEST MODE * Procedure:
While depressing the FUNCTION MODE and the EQUALIZER buttons simultaneously, press the power [1/u] button to turn on the main power. The message DSP NO ERROR or DSP ERROR. When DSP NO ERROR is displayed, a 1 kHz signal is output to all channels. When the B, V, v, or b button is pressed while DSP NO ERROR is displayed, the message DSP TEST MODE appears. In this mode, the input signal that is selected by the FUNCTION key is distributed to each speaker. Speaker CENTER REAR L REAR R FRONT L FRONT R Signal L L R L R

FACTORY SET MODE
* All preset contents are reset to the default setting. * Procedure: While depressing the FUNCTION MODE and the SOUND FIELD GENRE buttons simultaneously, press the power [1/u] button to turn on the main power. The message FACTORY SET appears and the present contents are reset to the default values.

ALL CLEAR MODE
* All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair. * Procedure: While depressing the SOUND FIELD GENRE and the SOUND FIELD ON/OFF buttons simultaneously, press the power [1/u] button to turn on the main power. The message ALL CLEAR!appears and the preset data is cleared.

DTS MODE * Procedure:
While depressing the B and b buttons simultaneously, press the power [1/u] button to turn on the main power. The message ATTENUATE OFF or ATTENUATE ON.

�7�

You might also want to buy

$4.99

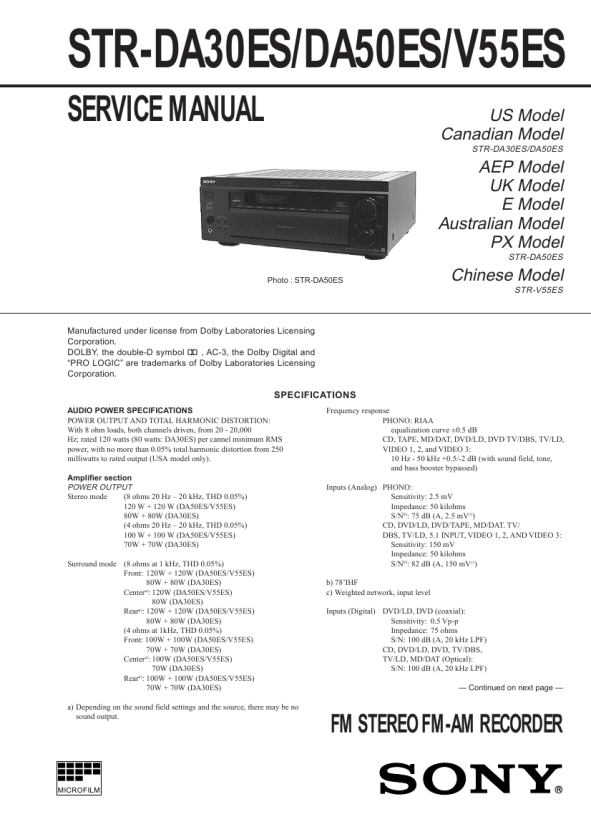

STRDA50ES SONY
