KENWOOD SW3HT
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of KENWOOD SW3HT Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 5050 SANSUI Service Manual by John McKenna;
very good manual as always. easy to read, detailed and includes schematic
 STRDE698 SONY Service Manual by Jeffrey Miller;
I'm very satisfied with your manual service. Your website made it easy to locate the correct manual. Also the quality is great and I never had a problem reading the fine details. Thanks again. Jeff Miller JM Electronics
 22GM758 PHILIPS Service Manual by Frank Herrmann;
Good quality service manual German user manual. German user manual This is a quality scan of a manual in excellent condition and is just as good as having the original manual in hand
 LBTD505 SONY Service Manual by Jan Wrangel;
The manual for Sony LBT-D505 component stereo system is was excellent , with schematics, parts layout and parts list as well as instructions for adjustments for each component. Print was clear even when enlarged.
 E4418B AGILENT Service Manual by long pham;
It's exactly a complete and very useful manual with all details what I needed. Thank you!I will come back whenever I need your manuals or schematics.

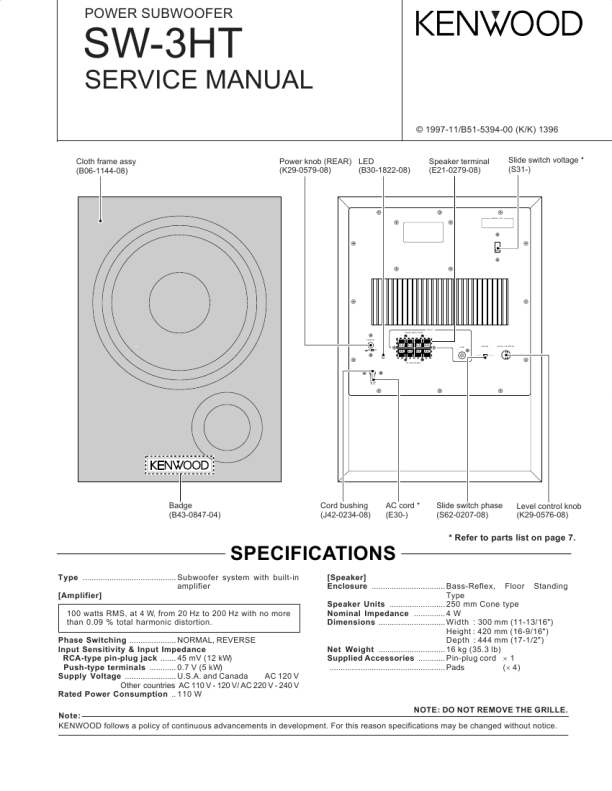

Text excerpt from page 1 (click to view)
POWER SUBWOOFER

SW-3HT
SERVICE MANUAL
© 1997-11/B51-5394-00 (K/K) 1396
Cloth frame assy (B06-1144-08) Power knob (REAR) LED (K29-0579-08) (B30-1822-08) Speaker terminal (E21-0279-08) Slide switch voltage * (S31-)

SERIAL NO.

INPUT FROM AMPLIFIER + POWER LINE
ON OFF
NORMAL REVERSE

R

�

�

L

+

PHASE

LEVEL CONTROL

+

R

�

�

L

+

TO SPEAKERS

Badge (B43-0847-04)

Cord bushing (J42-0234-08)

AC cord * (E30-)

Slide switch phase (S62-0207-08)

Level control knob (K29-0576-08)

* Refer to parts list on page 7.

SPECIFICATIONS
Type .......................................... Subwoofer system with built-in amplifier [Amplifier] 100 watts RMS, at 4 W, from 20 Hz to 200 Hz with no more than 0.09 % total harmonic distortion. Phase Switching ..................... NORMAL, REVERSE Input Sensitivity & Input Impedance RCA-type pin-plug jack ....... 45 mV (12 kW) Push-type terminals ............ 0.7 V (5 kW) Supply Voltage ....................... U.S.A. and Canada AC 120 V Other countries AC 110 V - 120 V/ AC 220 V - 240 V Rated Power Consumption .. 110 W [Speaker] Enclosure ................................. Bass-Reflex, Floor Standing Type Speaker Units ......................... 250 mm Cone type Nominal Impedance .............. 4 W Dimensions .............................. Width : 300 mm (11-13/16") Height : 420 mm (16-9/16") Depth : 444 mm (17-1/2") Net Weight .............................. 16 kg (35.3 lb) Supplied Accessories ............ Pin-plug cord � 1 .................................................... Pads (� 4)

NOTE: DO NOT REMOVE THE GRILLE. Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
