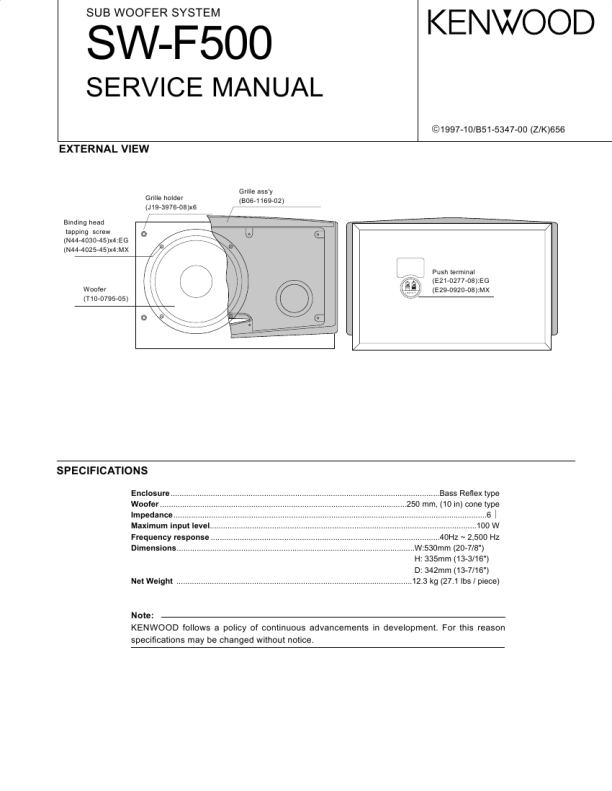

SUB WOOFER SYSTEM
SW-F500
SERVICE MANUAL
©1997-10/B51-5347-00 (Z/K)656 EXTERNAL VIEW
Grille holder (J19-3976-08)x6 Binding head tapping screw (N44-4030-45)x4:EG (N44-4025-45)x4:MX
Grille ass'y (B06-1169-02)
Woofer (T10-0795-05)
INPUT
Push terminal (E21-0277-08):EG (E29-0920-08):MX
SPECIFICATIONS
Enclosure .........................................................................................................................Bass Reflex type Woofer ...............................................................................................................250 mm, (10 in) cone type Impedance.............................................................................................................................................6 � Maximum input level........................................................................................................................100 W Frequency response .......................................................................................................40Hz ~ 2,500 Hz Dimensions...........................................................................................................W:530mm (20-7/8") H: 335mm (13-3/16") D: 342mm (13-7/16") Net Weight ..........................................................................................................12.3 kg (27.1 lbs / piece)
Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
|
|
 |
> |
|
|
