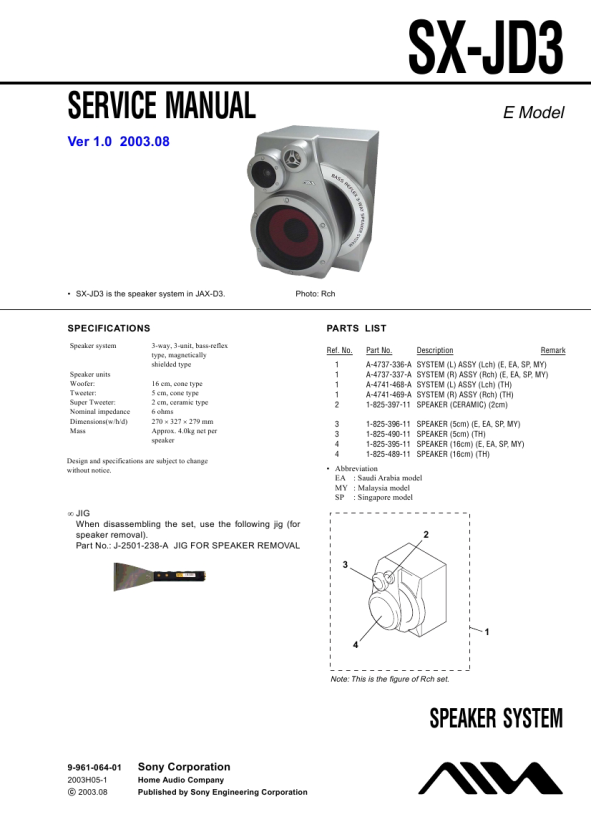

SX-JD3
SERVICE MANUAL
Ver 1.0 2003.08
E Model
� SX-JD3 is the speaker system in JAX-D3.
Photo: Rch
SPECIFICATIONS
Speaker system 3-way, 3-unit, bass-reflex type, magnetically shielded type 16 cm, cone type 5 cm, cone type 2 cm, ceramic type 6 ohms 270 � 327 � 279 mm Approx. 4.0kg net per speaker
PARTS LIST
Ref. No. 1 1 1 1 2 3 3 4 4 Part No. A-4737-336-A A-4737-337-A A-4741-468-A A-4741-469-A 1-825-397-11 Description Remark
Speaker units Woofer: Tweeter: Super Tweeter: Nominal impedance Dimensions(w/h/d) Mass
SYSTEM (L) ASSY (Lch) (E, EA, SP, MY) SYSTEM (R) ASSY (Rch) (E, EA, SP, MY) SYSTEM (L) ASSY (Lch) (TH) SYSTEM (R) ASSY (Rch) (TH) SPEAKER (CERAMIC) (2cm)
1-825-396-11 SPEAKER (5cm) (E, EA, SP, MY) 1-825-490-11 SPEAKER (5cm) (TH) 1-825-395-11 SPEAKER (16cm) (E, EA, SP, MY) 1-825-489-11 SPEAKER (16cm) (TH)
Design and specifications are subject to change without notice.
� Abbreviation EA : Saudi Arabia model MY : Malaysia model SP : Singapore model
� JIG When disassembling the set, use the following jig (for speaker removal). Part No.: J-2501-238-A JIG FOR SPEAKER REMOVAL
2 3
1 4
Note: This is the figure of Rch set.
SPEAKER SYSTEM
9-961-064-01
2003H05-1 C 2003.08
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
