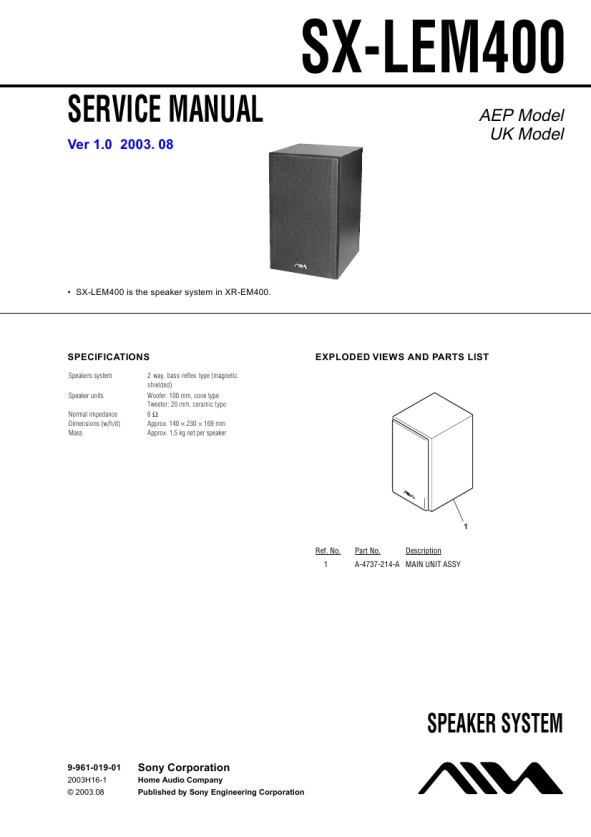

SX-LEM400
SERVICE MANUAL
Ver 1.0 2003. 08
AEP Model UK Model
� SX-LEM400 is the speaker system in XR-EM400.
SPECIFICATIONS
Speakers system Speaker units Normal impedance Dimensions (w/h/d) Mass 2 way, bass-reflex type (magnetic shielded) Woofer: 100 mm, cone type Tweeter: 20 mm, ceramic type 6� Approx. 140 � 230 � 169 mm Approx. 1.5 kg net per speaker
EXPLODED VIEWS AND PARTS LIST
1
Ref. No. 1 Part No. Description
A-4737-214-A MAIN UNIT ASSY
SPEAKER SYSTEM
9-961-019-01
2003H16-1 © 2003.08
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
