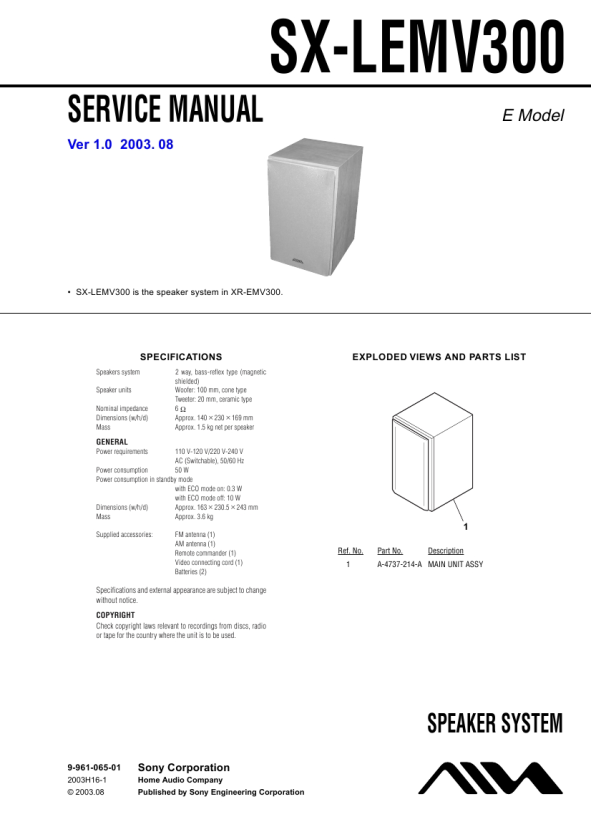

SX-LEMV300
SERVICE MANUAL
Ver 1.0 2003. 08
E Model
� SX-LEMV300 is the speaker system in XR-EMV300.
SPECIFICATIONS
Speakers system Speaker units Nominal impedance Dimensions (w/h/d) Mass 2 way, bass-reflex type (magnetic shielded) Woofer: 100 mm, cone type Tweeter: 20 mm, ceramic type 6� Approx. 140 � 230 � 169 mm Approx. 1.5 kg net per speaker
EXPLODED VIEWS AND PARTS LIST
GENERAL
Power requirements 110 V-120 V/220 V-240 V AC (Switchable), 50/60 Hz Power consumption 50 W Power consumption in standby mode with ECO mode on: 0.3 W with ECO mode off: 10 W Dimensions (w/h/d) Approx. 163 � 230.5 � 243 mm Mass Approx. 3.6 kg Supplied accessories: FM antenna (1) AM antenna (1) Remote commander (1) Video connecting cord (1) Batteries (2)
1
Ref. No. 1 Part No. Description
A-4737-214-A MAIN UNIT ASSY
Specifications and external appearance are subject to change without notice. COPYRIGHT Check copyright laws relevant to recordings from discs, radio or tape for the country where the unit is to be used.
SPEAKER SYSTEM
9-961-065-01
2003H16-1 © 2003.08
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
|
