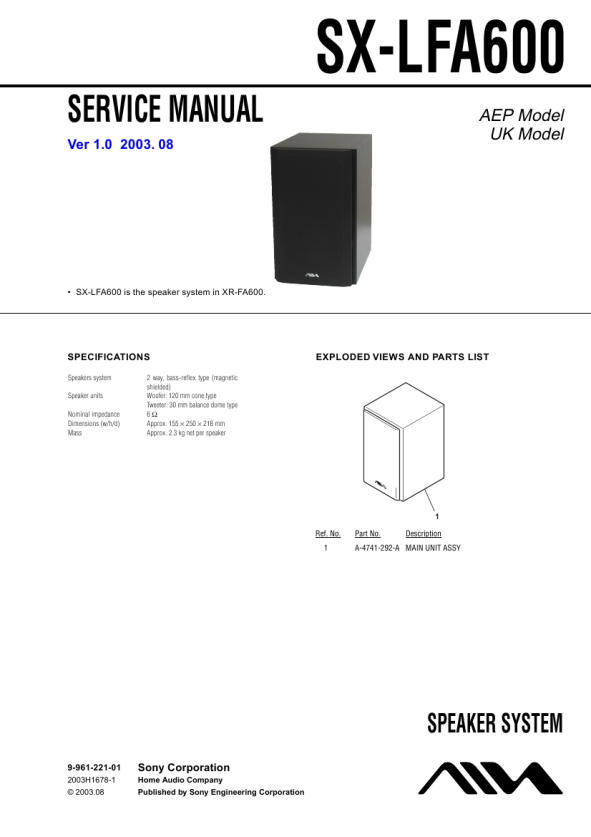

Text excerpt from page 1 (click to view)
SX-LFA600
SERVICE MANUAL
Ver 1.0 2003. 08
AEP Model UK Model
� SX-LFA600 is the speaker system in XR-FA600.
SPECIFICATIONS
Speakers system Speaker units Nominal impedance Dimensions (w/h/d) Mass 2 way, bass-reflex type (magnetic shielded) Woofer: 120 mm cone type Tweeter: 30 mm balance dome type 6� Approx. 155 � 250 � 218 mm Approx. 2.3 kg net per speaker
