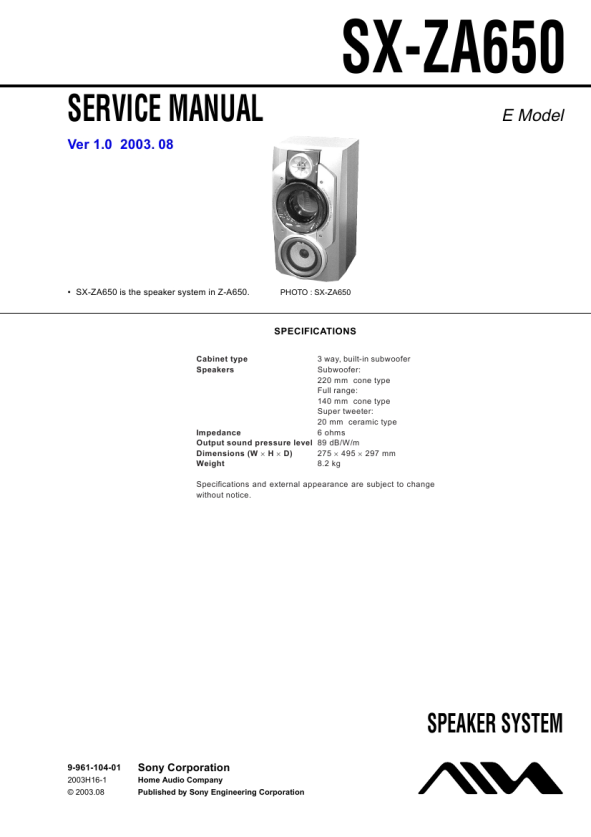

SX-ZA650
SERVICE MANUAL
Ver 1.0 2003. 08
E Model
� SX-ZA650 is the speaker system in Z-A650.
PHOTO : SX-ZA650
SPECIFICATIONS
3 way, built-in subwoofer Subwoofer: 220 mm cone type Full range: 140 mm cone type Super tweeter: 20 mm ceramic type Impedance 6 ohms Output sound pressure level 89 dB/W/m Dimensions (W � H � D) 275 � 495 � 297 mm Weight 8.2 kg Specifications and external appearance are subject to change without notice. Cabinet type Speakers
SPEAKER SYSTEM
9-961-104-01
2003H16-1 © 2003.08
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
