SONY TAAV581
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY TAAV581 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 SM-152 INFINITY Service Manual by LUIS CUEVA;
I BOUGHT A PAIR OF INFINITY VINTAGE SPEAKERS THAT REQUIRED TO BE REPAIRED AND THE ELECTRONIC TECHNICIAN ASKED ME FOR THE SERVICE MANUAL. I TRIED TO GET IT AT THE MANUFACTURER'S SITE WITH NO SUCCESS, SO I STARTED TO LOOK FOR IT IN THE WEB FOR A LONG TIME, UNTIL I FOUND THE SERVICE MANUAL IN THIS EXCELLENT SITE "OWNER'S MANUAL.COM". NOW I HAVE MY SPEAKERS WORKING AND ENJOYING THE MUSIC I LIKE. THANKS TO "OWNER`S MANUAL.COM" I RECOMMEND THIS SITE TO EVERYONE.
 3537 ALPINE Service Manual by Jozef Benedik;
Very quick response. Very good and accurate print quality of the scanned document.
 KACPS100 KENWOOD Service Manual by Mike Duncan;
The service manual was very usable and clear enough to see the individual values of all of the components (unlike some of the service manuals I have gotten in the past from web sites similar to this one). The price was right and the information was greatly appreciated. It helped me with an otherwise very difficult repair. It was much needed and appreciated. A faster turn around on my order would be nice, but I understand the constraints on your staff's time. Thank you for your service.
 PT-L785U PANASONIC Service Manual by Edward Carlson;
Excellent manual. Helped me out with disassembling and troubleshooting my projector.
 BVM-14F5E SONY Service Manual by Argyris Tsapras;
thanks you are the best.Very good detail, Quick service response. A useful service manual with all details.

Text excerpt from page 1 (click to view)

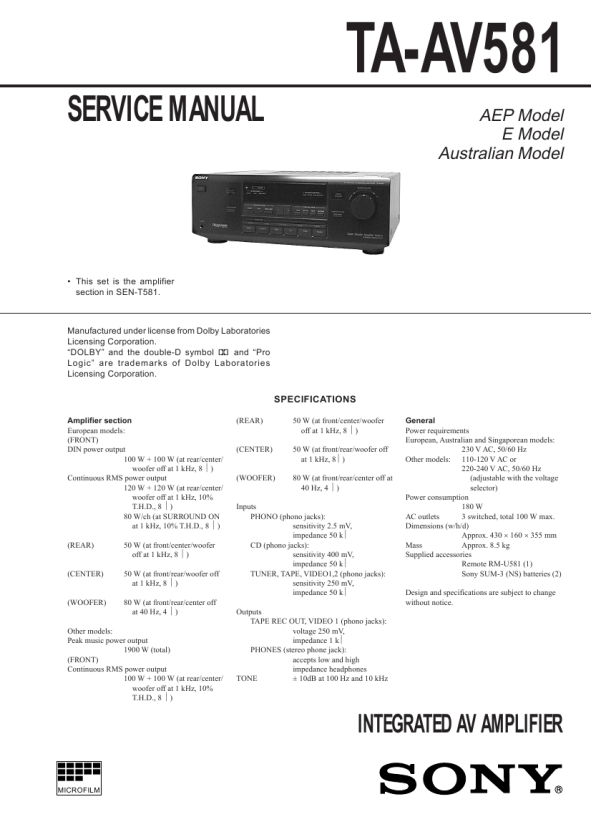

TA-AV581
SERVICE MANUAL
AEP Model E Model Australian Model

• This set is the amplifier section in SEN-T581.

Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a and “Pro Logic” are trademarks of Dolby Laboratories Licensing Corporation.

SPECIFICATIONS
Amplifier section European models: (FRONT) DIN power output 100 W + 100 W (at rear/center/ woofer off at 1 kHz, 8 Ω) Continuous RMS power output 120 W + 120 W (at rear/center/ woofer off at 1 kHz, 10% T.H.D., 8 Ω) 80 W/ch (at SURROUND ON at 1 kHz, 10% T.H.D., 8 Ω) (REAR) 50 W (at front/center/woofer off at 1 kHz, 8 Ω) 50 W (at front/rear/woofer off at 1 kHz, 8 Ω) 80 W (at front/rear/center off at 40 Hz, 4 Ω) (REAR) 50 W (at front/center/woofer off at 1 kHz, 8 Ω) 50 W (at front/rear/woofer off at 1 kHz, 8Ω) 80 W (at front/rear/center off at 40 Hz, 4 Ω) General Power requirements European, Australian and Singaporean models: 230 V AC, 50/60 Hz Other models: 110-120 V AC or 220-240 V AC, 50/60 Hz (adjustable with the voltage selector) Power consumption 180 W AC outlets 3 switched, total 100 W max. Dimensions (w/h/d) Approx. 430 × 160 × 355 mm Mass Approx. 8.5 kg Supplied accessories Remote RM-U581 (1) Sony SUM-3 (NS) batteries (2) Design and specifications are subject to change without notice.

(CENTER)

(WOOFER)

(CENTER)

Inputs PHONO (phono jacks): sensitivity 2.5 mV, impedance 50 kΩ CD (phono jacks): sensitivity 400 mV, impedance 50 kΩ TUNER, TAPE, VIDEO1,2 (phono jacks): sensitivity 250 mV, impedance 50 kΩ Outputs TAPE REC OUT, VIDEO 1 (phono jacks): voltage 250 mV, impedance 1 kΩ PHONES (stereo phone jack): accepts low and high impedance headphones TONE ± 10dB at 100 Hz and 10 kHz

(WOOFER)

Other models: Peak music power output 1900 W (total) (FRONT) Continuous RMS power output 100 W + 100 W (at rear/center/ woofer off at 1 kHz, 10% T.H.D., 8 Ω)

INTEGRATED AV AMPLIFIER
