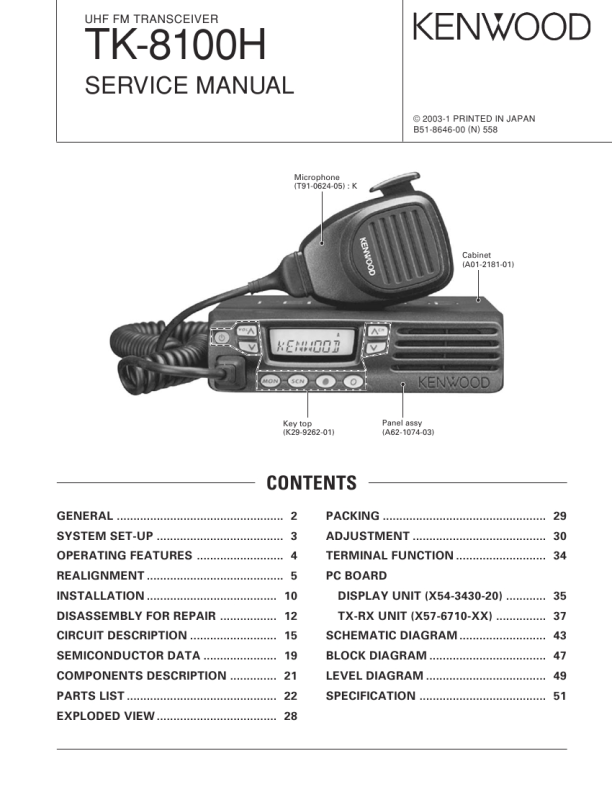

TK-8100H
DISASSEMBLY FOR REPAIR
w t
Lift up the display unit and remove.
Open the bottom of display unit at No. 2 as indicated.
e
4-2. Mount the display unit To mount the display unit on the panel, follow the correct procedures shown to ensure easy display unit assembly and good fitting onto the panel.
q
Open the bottom of display unit at No. 3 as indicated.
r
Open the top of display unit at No. 4 as indicated.
w
Insert phone jack into panel first.
13
|
|
|
> |
|
