Home >> KENWOOD >> TK480 Service Manual

 0 item(s) in your cart

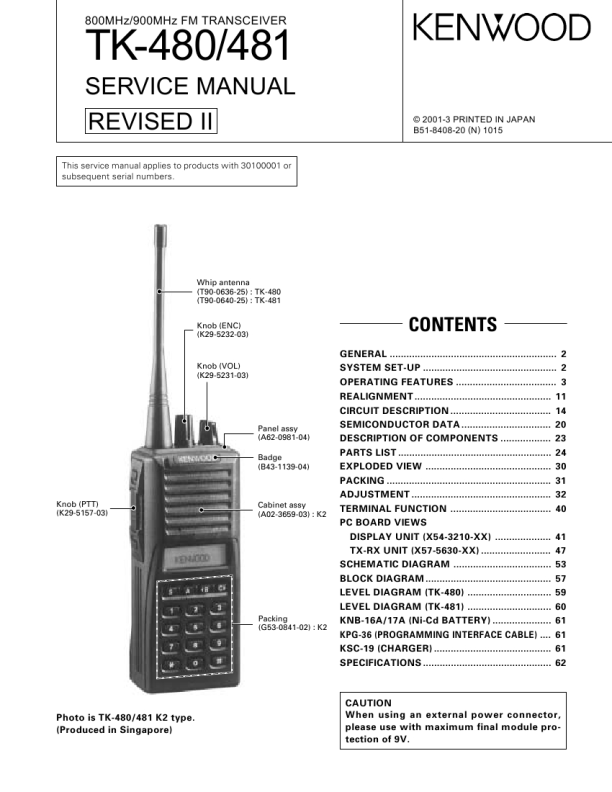

KENWOOD TK480
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of KENWOOD TK480 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 AU-D101 SANSUI Service Manual by Adrian Davies;
It has all the information you will need to fix it. The main circuit diagram is only A4 but being a PDF, you can print it to any size - I did it on two sheets of A3 and it didnt lose any detail - just made it readable when pinned up above the bench. I've found the fault, just need to buy some obscure bits to get it going again! I cant fault the process, I paid for the manual in the morning and it was ready to download by lunch time.
 VSX455 PIONEER Service Manual by Meyer M Rochwerger;
Very good copy in a 54 pages PDF archive. This is my sixth purchase here. :)
 RF1150LB PANASONIC Service Manual by Meyer M Rochwerger;
Another excellent buy! File too clear and explanatory.
 SU-G90 TECHNICS Service Manual by Meyer M Rochwerger;
A manual hard to find. It was very helpful to restore my device.
 SA5600X TECHNICS Service Manual by Meyer M Rochwerger;
I am very grateful for this manual. Without it could not repair my receiver.

Text excerpt from page 16 (click to view)
TK-480/481
CIRCUIT DESCRIPTION
5. Frequency Synthesizer Unit
5-1. Frequency synthesizer
The frequency synthesizer consists of the VCXO (X2), VCO (IC14), PLL IC (IC11) and buffer amplifiers. The VCXO generates 16.8MHz. The frequency stability is 1.5ppm within the temperature range of �30 to +60°C. The frequency tuning and modulation of the VCXO are done to apply a voltage to pin 1 of the VCXO. The output of the VCXO is applied to pin 8 of the PLL IC. The TK-480�s VCO covers a dual range of the 806~ 825MHz, and the 851~870MHz. The VCO generates 806.15~825.15MHz for providing to the first local signal in receive. In TA mode, the pin 1 of the VCO goes low and the VCO generates 851~870MHz. The TK-481�s VCO covers a dual range of the 896~ 902MHz, and the 935~941MHz. The VCO generates 890.15~896.15MHz for providing to the first local signal in receive. In TA mode, the pin 1 of the VCO goes low and the VCO generates 935~941MHz. The output of the VCO is amplified by the buffer amplifier (Q8) and routed to the pin 5 of the PLL IC. Also the output of the VCO is amplified by the two-buffer amplifier (Q10, Q17) and routed to the next stage according to T/R switch (D4, D5). The PLL IC consists of a prescaler, fractional divider, reference divider, phase comparator, charge pump. This PLL IC is fractional-N type synthesizer and performs in the 100kHz reference signal which is eighth of the channel step (12.5kHz). The input signal from the pins 1 and 5 of the PLL IC is divided down to the 100kHz and compared at phase comparator. The pulsed output signal of the phase comparator is applied to the charge pump and transformed into DC signal in the loop filter (LPF). The DC signal is applied to the pin 3 of the VCO and locked to keep the VCO frequency constant. PLL data is output from DT (pin 52), CP (pin 64) and EP (pin 69) of the microprocessor (IC15). The data are input to the PLL IC when the channel is changed or when transmission is changed to reception and vice versa. A PLL lock condition is always monitored by the pin 21 (UL) of the microprocessor. When the PLL is unlocked, the UL goes low.

6. Control Circuit
The control circuit consists of microprocessor (IC15) and its peripheral circuits. It controls the TX-RX unit and transfers data to and from the display unit. IC15 mainly performs the following; 1) Switching between transmission and reception by PTT signal input. 2) Reading system, group, frequency, and program data from the memory circuit. 3) Sending frequency program data to the PLL. 4) Controlling squelch on/off by the DC voltage from the squelch circuit. 5) Controlling the audio mute circuit by decode data input. 6) Transmitting tone and encode data.

6-1. Memory circuit
Memory circuit consists of the CPU (IC15) and a flash memory (IC17), a flash memory has a capacity of 2M bits that contains the transceiver control program for the CPU and data such as transceiver channels and operating features. This program can be easily written from an external devices. The data, such as operating status, is programmed into the EEPROM (IC16).

� Flash Memory
Note : The flash memory holds data such as written with the FPU (KPG-49D), firmware program (User mode, Test mode, Tuning mode, etc.) This data must be rewritten when replacing the flash memory.

� EEPROM
Note : The EEPROM stores tuning data (Deviation, Squelch, etc.). Realign the transceiver after replacing the EEPROM.

IC15 CPU

IC16 EEPROM

TA (TA : Low)

TA

IC14 VCO CV

Q10 BUFF Q8

Q17 BUFF

D5 SW D4

To drive amp

LPF IC11 5 PLL 18 UL CPU DT,CP,EP IC15 8

BUFF

SW

FLASH IC17

To mixer

Fig. 9
VCXO MB FC IC1 BAL

Memory circuit

Fig. 8 PLL block diagram

17
